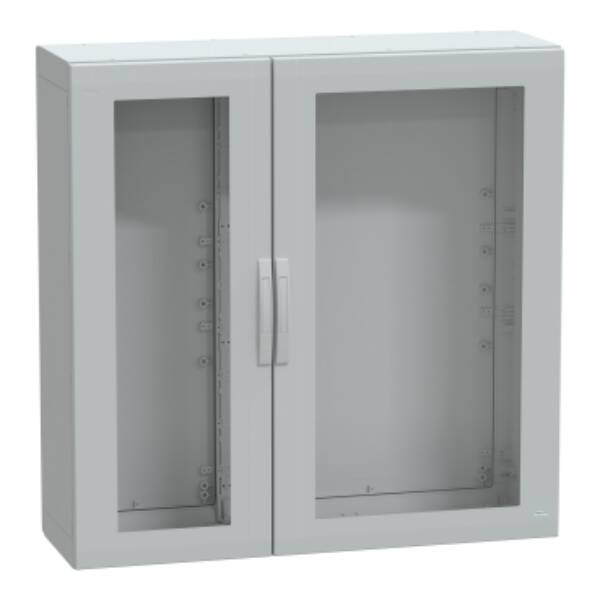

"This PLA is a multi-purpose, floor-standing device that is suitable for various applications" "It has nominal dimensions of 1250mm in height, 1250mm in width, and 420mm in depth" "It is made of polyester reinforced with fiberglass, providing strength and resistance to harsh environments, including outdoor and industrial settings" "The enclosure is available in grey (RAL 7035)" "It consists of two side parts, two transparent front doors, and two rear panels" "The doors open up to 120° from both the right and left sides, and feature a four-point lock with a 5mm double-bar insert" "The doors and rear panels can be removed for maintenance purposes" "The enclosure offers robust protection against various hazards, including fire, impacts, dust, and water" "It can withstand fire up to 960°C in accordance with the IEC 62208 standard" "It is also certified to UL 508 A and has a NEMA 12, NEMA 2, NEMA 1, and NEMA 13 rating, providing high protection against impacts, dust, and water" "Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions" "It is UL certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance"

Brand

Schneider Electric

Range

PanelSeT PLA

Part No

NSYPLA12124TG

Weight (kg)

63.00 kg

Type

Thalassa PLA

Couplable

FALSE

With mounting plate

FALSE

Freestanding

FALSE

With glazed door

TRUE

Suitable for metrical mounting

FALSE

With cover

FALSE

RAL-number

7035

Transparent cover

FALSE

Height

1250

Degree of protection (IP)

IP65

Pitched roof

FALSE

Floor standing wall model

FALSE

Colour

Grey

Width

1250

Intermediate mounting

FALSE

Surface finishing

Untreated

Material

Plastic

Number of doors

2

Number of locks

1

Corner model

FALSE

Suitable for outdoor set-up

TRUE

Suitable for wall mounting

TRUE

Material quality

Polyester (PET)

Depth

420

Suitable for wall built-in

FALSE

Pre-stamping

FALSE

Max. permissible load of the mounting plate according to IEC 62208

1667

With door

TRUE

Mounting plate depth-adjustable

FALSE

Impact strength

IK08

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

4

With rear door

FALSE

Pole fastening

FALSE

Max. permissible load of the enclosure according to IEC 62208

2177
