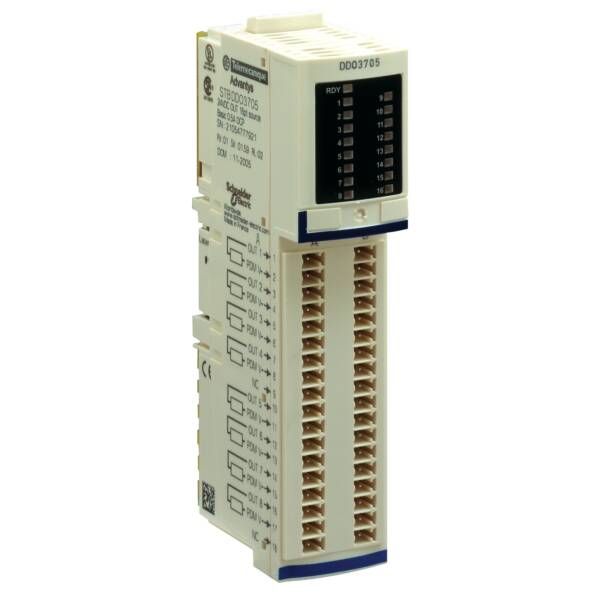

This output module is part of the Modicon STB range, an offer of IP20 modular distributed I/Os on multiple networks and fieldbus. This basic digital output module offers 16 outputs with positive discrete output logic. It offers discrete output voltage of 24V DC with solid state discrete output. There is an insulation between channels and logic bus at 1500V for 1 minute. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height). It weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It meets EN/IEC 61131-2 standard. It is compatible with I/O base STBXBA3000 and power distribution module STBPDT3100/3105. Advantys distributed I/O solutions are simple, open and flexible, meeting needs in every stage of the product life cycle. For distributed connection to sensors and actuators from a PLC with prefabricated cables.

Brand

Schneider Electric

Range

Advantys STB

Part No

STBDDO3705

Weight (kg)

0.10 kg

Type

Advantys STB

Supporting protocol for SERCOS

FALSE

SIL according to IEC 61508

None

With optical interface

FALSE

System accessory

TRUE

Digital inputs configurable

FALSE

Digital outputs configurable

FALSE

Permitted voltage at output

19.2…30 Volt

Performance level according to EN ISO 13849-1

None

Certified for UL hazardous location division 2

FALSE

Permitted voltage at input

19.2…30 Volt

Radio standard GPRS

FALSE

Type of voltage (input voltage)

DC

Fieldbus connection over separate bus coupler possible

TRUE

Time delay at signal change

2 Millisecond

Height

13.9

Supporting protocol for INTERBUS-Safety

FALSE

Certified for UL hazardous location class I

FALSE

Certified for UL hazardous location class III

FALSE

Certified for UL hazardous location division 1

FALSE

Certified for UL hazardous location class II

FALSE

Width

128.3

Supporting protocol for EtherCAT

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Radio standard GSM

FALSE

Explosion safety category for dust

Other

Radio standard UMTS

FALSE

Depth

70

Explosion safety category for gas

Other

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

Certified for UL hazardous location group C (ethylene)

FALSE

Certified for UL hazardous location group A (acetylene)

FALSE

Certified for UL hazardous location group B (hydrogen)

FALSE

Certified for UL hazardous location group F (carbonaceous dusts)

FALSE

Certified for UL hazardous location group G (non-conductive dusts)

FALSE

Certified for UL hazardous location group D (propane)

FALSE

Certified for UL hazardous location group E (metal dusts)

FALSE

Supporting protocol for SafetyBUS p

FALSE

Type of electric connection

Screw connection

Output current

0.5

Voltage type (supply voltage)

DC

Short-circuit protection, outputs available

TRUE

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Type of digital output

Other

Radio standard Bluetooth

FALSE

Supporting protocol for ASI

FALSE

Supporting protocol for PROFIBUS

FALSE

Radio standard WLAN 802.11

FALSE

Appendant operation agent (Ex ia)

FALSE

Supporting protocol for TCP/IP

FALSE

Front built-in possible

FALSE

Supporting protocol for KNX

FALSE

Supporting protocol for CAN

FALSE

Appendant operation agent (Ex ib)

FALSE

Degree of protection (IP)

IP20

IO link master

FALSE

Type of output voltage

DC

Supporting protocol for INTERBUS

TRUE

Rail mounting possible

FALSE

Supporting protocol for DeviceNet

FALSE

Supporting protocol for Modbus

FALSE

Suitable for safety functions

FALSE

Number of digital outputs

16

Supporting protocol for Data-Highway

FALSE

Supply voltage DC

24 Volt

Rack-assembly possible

TRUE

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Wall mounting/direct mounting

FALSE
