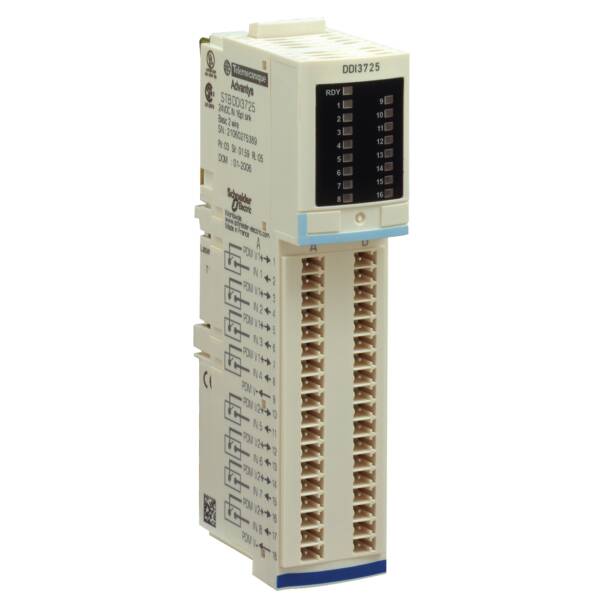

basic digital input module STB - 24 V DC - 16 I - Schneider Electric - STBDDI3725

basic digital input module STB - 24 V DC - 16 I - Schneider Electric - STBDDI3725

STBDDI3725

basic digital input module STB - 24 V DC - 16 I - Schneider Electric - STBDDI3725

Automation

~~List Price £139.99 +VAT~~

Our Price £111.99 +VAT

SAVE 21% OFF List Price

Estimated delivery between 7-10 working days

This input module is part of the Modicon STB range, an offer of IP20 modular distributed I/Os on multiple networks and fieldbus. This basic digital input module offers 16 inputs with positive discrete input logic. It is a module with discrete input voltage of 24V DC. There is an insulation between channels and logic bus at 1500V for 1 minute. It is an IP20 rated product. Its dimensions are 125mm (width) x 65.1mm (depth) x 18.4mm (height). It weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It meets EN/IEC 61131-2 type 3 standard. It is compatible with I/O base STBXBA3000 and power distribution module STBPDT3100/3105. Advantys distributed I/O solutions are simple, open and flexible, meeting needs in every stage of the product life cycle. For distributed connection to sensors and actuators from a PLC with prefabricated cables.

Brand: Schneider Electric
Range: Advantys STB
Part No: STBDDI3725
Weight (kg): 0.10 kg
Type: Advantys STB
Supporting protocol for SERCOS: FALSE
SIL according to IEC 61508: None
With optical interface: FALSE
System accessory: TRUE
Digital inputs configurable: FALSE
Digital outputs configurable: FALSE
Performance level acc. EN ISO 13849-1: None
Permitted voltage at input: -3…30 V
Radio standard GPRS: FALSE
Type of voltage (input voltage): AC/DC
Fieldbus connection over separate bus coupler possible: TRUE
Height: 18.4
Time delay at signal exchange: 2 ms
Supporting protocol for INTERBUS-Safety: FALSE
Category according to EN 954-1: 1
Width: 125
Supporting protocol for AS-Interface Safety at Work: FALSE
Explosion safety category for dust: None
Radio standard GSM: FALSE
Radio standard UMTS: FALSE
Depth: 65.1
Explosion safety category for gas: None
Supporting protocol for DeviceNet Safety: FALSE
Supporting protocol for EtherNet/IP: FALSE
Supporting protocol for Foundation Fieldbus: FALSE
Input current at signal 1: 4.5
Supporting protocol for SafetyBUS p: FALSE
Type of electric connection: Screw connection
Short-circuit protection, outputs available: FALSE
Voltage type of supply voltage: AC/DC
Supporting protocol for PROFINET CBA: FALSE
Supporting protocol for PROFINET IO: FALSE
Supporting protocol for PROFIsafe: FALSE
Type of digital output: None
Supporting protocol for ASI: FALSE
Radio standard Bluetooth: FALSE
Radio standard WLAN 802.11: FALSE
Appendant operation agent (Ex ia): FALSE
Supporting protocol for PROFIBUS: FALSE
Front build in possible: FALSE
Supporting protocol for TCP/IP: FALSE
Supporting protocol for KNX: FALSE
Degree of protection (IP): IP20
Appendant operation agent (Ex ib): FALSE
Supporting protocol for CAN: FALSE
Type of output voltage: AC/DC
IO link master: FALSE
Supporting protocol for INTERBUS: FALSE
Rail mounting possible: FALSE
Supporting protocol for DeviceNet: FALSE
Supporting protocol for MODBUS: FALSE
Suitable for safety functions: FALSE
Number of digital inputs: 16
Supporting protocol for Data-Highway: FALSE
Supply voltage DC: 24 V
Rack-assembly possible: TRUE
Supporting protocol for LON: FALSE
Supporting protocol for other bus systems: FALSE
Supporting protocol for SUCONET: FALSE
Wall mounting/direct mounting: FALSE

Datasheet for STBDDI3725 - basic digital input module STB - 24 V DC - 16 I - Schneider Electric - STBDDI3725

Download
