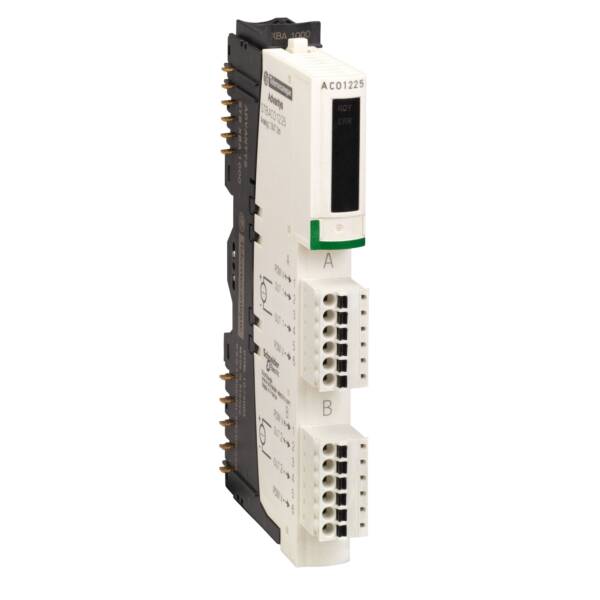

This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic analogue output kit has 2 analogue outputs with 10bit resolution. It is an analogue output kit with a rated supply voltage of 24V DC and a current consumption of 30mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height). It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. This kit is suitable for use with power distribution module STBPDT3100/3105 and mounting base STBXBA1000. The kit includes STBXBA1000 base, STBAVI1270 module, STBXTS2100, 6-terminal spring clamp connector and STBXTS1100, 6-terminal screw type connector. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.

Brand

Schneider Electric

Range

Advantys STB

Part No

STBACO1225K

Weight (kg)

0.14 kg

Type

Advantys STB

Supporting protocol for SERCOS

FALSE

Analogue inputs configurable

FALSE

Analogue outputs configurable

TRUE

SIL according to IEC 61508

None

System accessory

TRUE

Performance level acc. EN ISO 13849-1

None

Radio standard GPRS

FALSE

Fieldbus connection over separate bus coupler possible

TRUE

Height

18.4

Supporting protocol for INTERBUS-Safety

FALSE

Category according to EN 954-1

1

Width

128.3

Supporting protocol for AS-Interface Safety at Work

FALSE

Radio standard GSM

FALSE

Explosion safety category for dust

Other

Radio standard UMTS

FALSE

Depth

70

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

Input, thermocouple

FALSE

Input signal, configurable

FALSE

Supporting protocol for SafetyBUS p

FALSE

Type of electric connection

Screw connection

Voltage type of supply voltage

DC

Input, resistor

FALSE

Input, resistance thermometer

FALSE

Supporting protocol for PROFINET CBA

FALSE

Input, current

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Input voltage

FALSE

Supporting protocol for ASI

FALSE

Radio standard Bluetooth

FALSE

Supporting protocol for PROFIBUS

FALSE

Radio standard WLAN 802.11

FALSE

Appendant operation agent (Ex ia)

FALSE

Front build in possible

FALSE

Supporting protocol for TCP/IP

FALSE

Supporting protocol for KNX

FALSE

Supporting protocol for CAN

FALSE

Degree of protection (IP)

IP20

Appendant operation agent (Ex ib)

FALSE

Supporting protocol for INTERBUS

FALSE

IO link master

FALSE

Output voltage

FALSE

Supporting protocol for DeviceNet

FALSE

Rail mounting possible

TRUE

Resolution of the analogue outputs

10

Output signal configurable

FALSE

Suitable for safety functions

FALSE

Supporting protocol for MODBUS

FALSE

Resolution of the analogue inputs

10

Output, current

TRUE

Supporting protocol for Data-Highway

FALSE

Supply voltage DC

24 V

Number of analogue outputs

2

Rack-assembly possible

TRUE

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Wall mounting/direct mounting

FALSE
