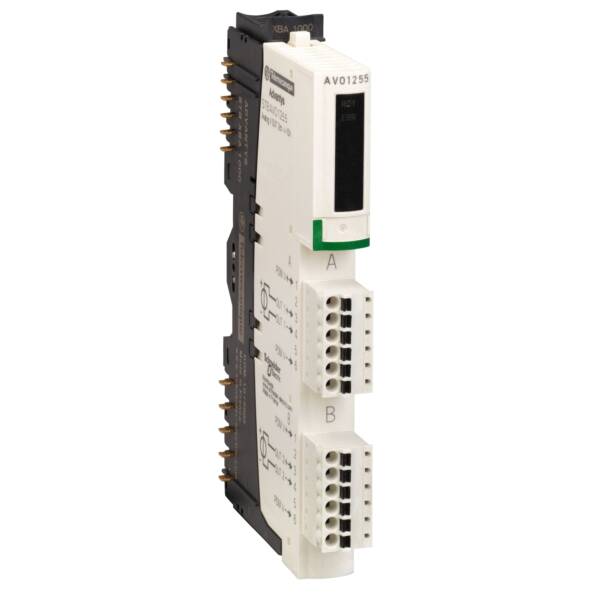

This output kit is part of the Modicon STB range, an offer of IP20 modular distributed I/Os on multiple networks and fieldbus. This standard analog output kit is an accessory kit for programmable logic controllers (PLC) and programmable automation controllers (PAC). It has 2 analog output (voltage 0V to 10V) with 10bit plus sign resolution. This product is compatible with most major Fieldbus networks. It is an analog input kit with a rated supply voltage of 24V DC and a current consumption of 45mA at 5V DC for logic bus. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 13.9mm (height). It weighs 0.116kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It is compatible with mounting base STBXBA1000 and power distribution module STBPDT3100/3105. The kit includes STBXTS2100, 6-terminal spring clamp connector, STBAVO1255 module, STBXBA1000 base and STBXTS1100, 6-terminal screw type connector. Advantys distributed I/O solutions are simple, open and flexible, meeting needs in every stage of the product life cycle. For distributed connection to sensors and actuators from a PLC with prefabricated cables.

Brand

Schneider Electric

Range

Advantys STB

Part No

STBAVO1255K

Weight (kg)

0.14 kg

Type

Advantys STB

Supporting protocol for SERCOS

FALSE

Analogue inputs configurable

FALSE

Analogue outputs configurable

TRUE

SIL according to IEC 61508

None

System accessory

TRUE

Performance level acc. EN ISO 13849-1

None

Radio standard GPRS

FALSE

Height

13.9

Fieldbus connection over separate bus coupler possible

TRUE

Supporting protocol for INTERBUS-Safety

FALSE

Category according to EN 954-1

1

Width

128.3

Supporting protocol for AS-Interface Safety at Work

FALSE

Explosion safety category for dust

Other

Radio standard GSM

FALSE

Radio standard UMTS

FALSE

Depth

70

Explosion safety category for gas

Other

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

Input, thermocouple

FALSE

Input signal, configurable

FALSE

Type of electric connection

Screw connection

Supporting protocol for SafetyBUS p

FALSE

Voltage type of supply voltage

DC

Input, resistor

FALSE

Input, resistance thermometer

FALSE

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Input, current

FALSE

Input voltage

FALSE

Supporting protocol for PROFIsafe

FALSE

Radio standard Bluetooth

FALSE

Supporting protocol for ASI

FALSE

Radio standard WLAN 802.11

FALSE

Appendant operation agent (Ex ia)

FALSE

Supporting protocol for PROFIBUS

FALSE

Front build in possible

FALSE

Supporting protocol for TCP/IP

FALSE

Supporting protocol for KNX

FALSE

Appendant operation agent (Ex ib)

FALSE

Degree of protection (IP)

IP20

Supporting protocol for CAN

FALSE

IO link master

FALSE

Supporting protocol for INTERBUS

FALSE

Rail mounting possible

TRUE

Supporting protocol for DeviceNet

FALSE

Output voltage

TRUE

Output signal configurable

TRUE

Resolution of the analogue outputs

10

Supporting protocol for MODBUS

FALSE

Suitable for safety functions

FALSE

Supporting protocol for Data-Highway

FALSE

Output, current

FALSE

Resolution of the analogue inputs

10

Number of analogue outputs

2

Supply voltage DC

0…10 V

Rack-assembly possible

TRUE

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Wall mounting/direct mounting

FALSE
