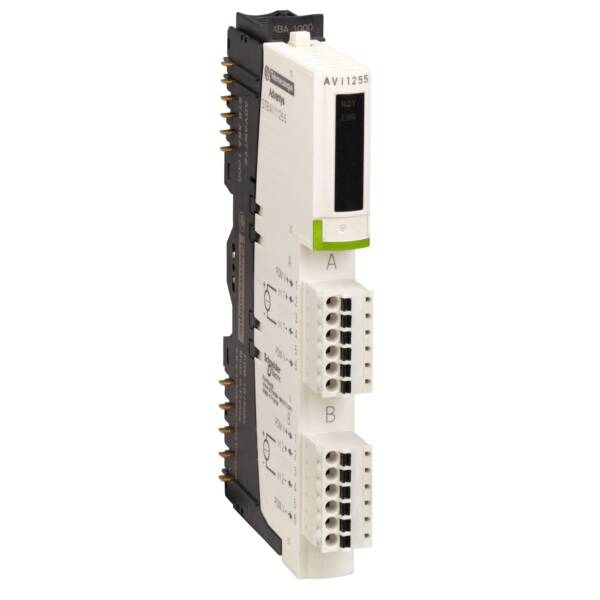

This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic analogue input kit is an accessory kit of Programmable Logic Controllers (PLC) and Programmable Automation Controllers (PAC). It has 2 analogue inputs (voltage 0V to 10V) with 10bit resolution. This product is compatible with most major fieldbus networks. It is an analogue input kit with a rated supply voltage of 24V DC and a current consumption of 30mA at 5V DC for logic bus. It is an IP20 rated product. It weighs 0.116kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, ATEX category 3G, CE, UL, CSA and C-Tick. This kit is suitable for use with mounting base STBXBA1000 and power distribution module STBPDT3100/3105. The kit includes STBAVI1255 module, STBXTS2100, 6-terminal spring clamp connector, STBXTS1100, 6-terminal screw type connector and STBXBA1000 base. The Modicon STB distributed I/O solution is an open, modular input/output system that makes it possible to design automation islands managed by a master controller via a bus or communication network.

Brand

Schneider Electric

Range

Advantys STB

Part No

STBAVI1255K

Weight (kg)

0.14 kg

Type

Advantys STB

Supporting protocol for SERCOS

FALSE

Analogue inputs configurable

TRUE

Analogue outputs configurable

FALSE

SIL according to IEC 61508

None

System accessory

TRUE

Performance level acc. EN ISO 13849-1

None

Radio standard GPRS

FALSE

Height

18.4

Fieldbus connection over separate bus coupler possible

TRUE

Supporting protocol for INTERBUS-Safety

FALSE

Category according to EN 954-1

1

Width

128.3

Supporting protocol for AS-Interface Safety at Work

FALSE

Radio standard GSM

FALSE

Explosion safety category for dust

Other

Radio standard UMTS

FALSE

Depth

70

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

Input, thermocouple

FALSE

Input signal, configurable

TRUE

Type of electric connection

Screw connection

Supporting protocol for SafetyBUS p

FALSE

Voltage type of supply voltage

AC/DC

Input, resistor

FALSE

Input, resistance thermometer

FALSE

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Input, current

TRUE

Supporting protocol for PROFIsafe

FALSE

Input voltage

FALSE

Supporting protocol for ASI

FALSE

Radio standard Bluetooth

FALSE

Supporting protocol for PROFIBUS

FALSE

Appendant operation agent (Ex ia)

FALSE

Radio standard WLAN 802.11

FALSE

Supporting protocol for TCP/IP

FALSE

Front build in possible

FALSE

Supporting protocol for KNX

FALSE

Appendant operation agent (Ex ib)

FALSE

Supporting protocol for CAN

FALSE

Degree of protection (IP)

IP20

IO link master

FALSE

Supporting protocol for INTERBUS

FALSE

Supporting protocol for DeviceNet

FALSE

Output voltage

FALSE

Rail mounting possible

TRUE

Output signal configurable

FALSE

Resolution of the analogue outputs

10

Suitable for safety functions

FALSE

Supporting protocol for MODBUS

FALSE

Supporting protocol for Data-Highway

FALSE

Output, current

FALSE

Resolution of the analogue inputs

10

Supply voltage DC

0…10 V

Number of analogue inputs

2

Rack-assembly possible

TRUE

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Wall mounting/direct mounting

FALSE
