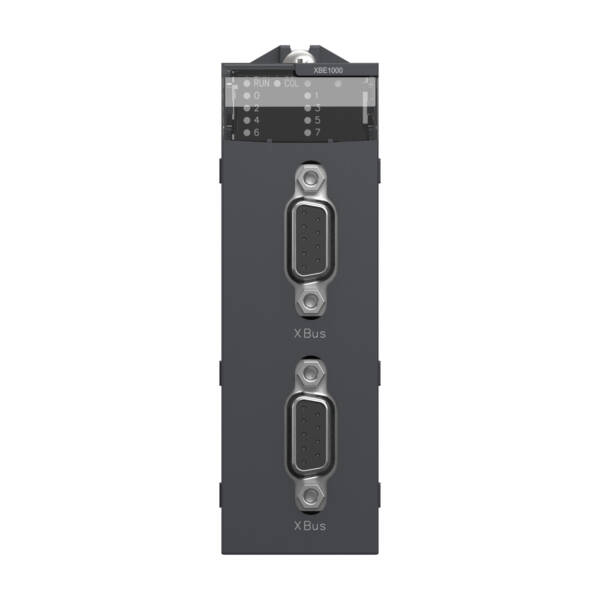

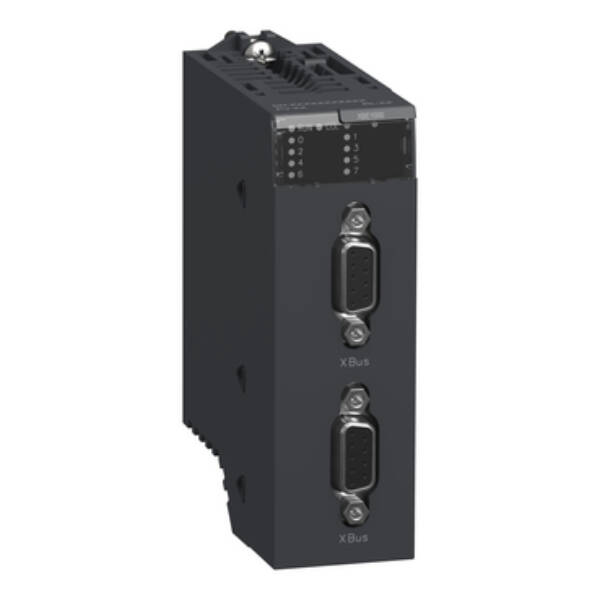

This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This backplane expander is an extension accessory of Modicon M580 and M340 Programmable Automation Controllers (PAC). It is an Ethernet backplane rack with a current of 160mA at 24V DC and 22mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2 x 9-way SUB-D female connectors for electrical connection. It is an IP20 rated product. It is suitable for medium to large process applications and expander is It is suitable for multiracks configuration. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This backplane expander is compatible with Modicon M340 BMXXBP0600, BMXXBP0400, BMXXBP0800 and BMXXBP1200 backplane. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Brand

Schneider Electric

Range

Modicon X80 I/Os

Part No

BMXXBE1000

Weight (kg)

0.17 kg

Type

Modicon X80 I/Os

SIL according to IEC 61508

None

Appendant operation agent (Ex ia)

FALSE

Performance level acc. EN ISO 13849-1

None

Front build in possible

FALSE

Type of voltage (input voltage)

AC/DC

Height

103.7

Appendant operation agent (Ex ib)

FALSE

Category according to EN 954-1

1

Max. output current DC

160

Width

32

Rail mounting possible

FALSE

Redundancy

FALSE

Suitable for safety functions

FALSE

Explosion safety category for dust

None

With integrated power supply

TRUE

Rack-assembly possible

TRUE

Depth

90

Explosion safety category for gas

None

Wall mounting/direct mounting

FALSE

Input voltage at DC

3.3…24 V
