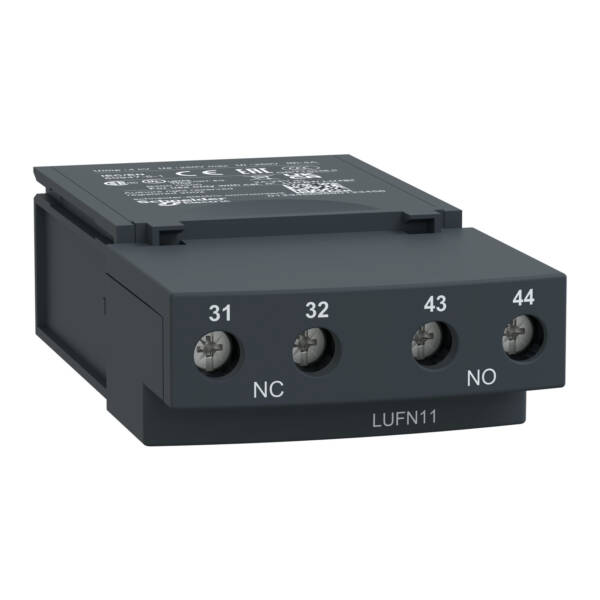

auxiliary contacts LUF - 1NO + 1NC - Schneider Electric - LUFN11

auxiliary contacts LUF - 1NO + 1NC - Schneider Electric - LUFN11

LUFN11

auxiliary contacts LUF - 1NO + 1NC - Schneider Electric - LUFN11

Control

~~List Price £13.41 +VAT~~

Our Price £10.06 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

TeSys U auxiliary signaling contacts module to be inserted in standard power bases LUB12, LUB32, LUB38 or advanced power base LUB120, LUB320, LUB380. It indicates the ON/OFF running status of the motor, whatever the direction of rotation. It provides 1NO+1NC instantaneous auxiliary contacts rated 24-250V AC/DC 5A max. It is powered by the control unit. To be inserted in the cavity of a power base provided for the auxiliary modules. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),

Brand: Schneider Electric
Range: TeSys Ultra
Part No: LUFN11
Weight (kg): 0.05 kg
Type: TeSys U
Number of contacts as normally open contact: 1
Number of contacts as normally closed contact: 1
Type of electric connection: Screw connection
Model: Integrable
Rated operation current Ie at AC-15, 230 V: 5
Mounting method: Other

Datasheet for LUFN11 - auxiliary contacts LUF - 1NO + 1NC - Schneider Electric - LUFN11

Download
