Brand
-
Schneider Electric
-
Range
-
TeSys Deca contactors
-
Part No
-

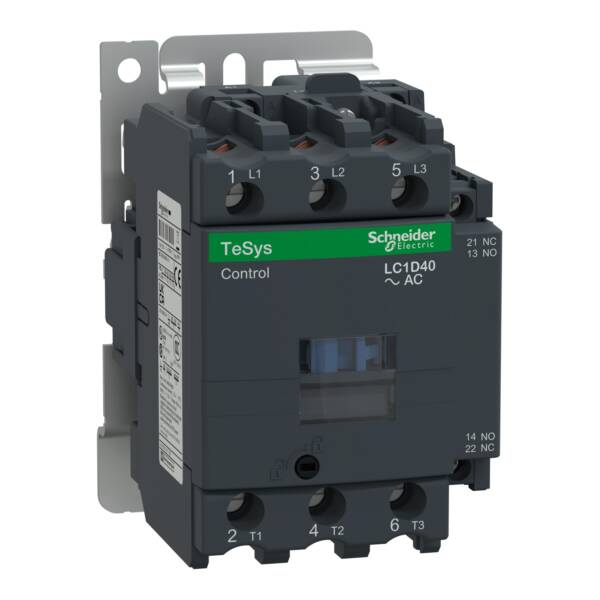

LC1D40P7S335
-
Weight (kg)
-
2.40 kg
-
Type
-
TeSys Deca contactors
-
Type of electrical connection of main circuit
-
Screw connection
-
Width
-
75
-
Rated control supply voltage AC 50 Hz
-
230 Volt
-
Rated control supply voltage AC 60 Hz
-
230 Volt
-
Rated operation power at AC-3, 400 V
-
18.5
-
Number of normally open contacts as main contact
-
3
-
Number of auxiliary contacts as normally closed contact
-
1
-
Number of auxiliary contacts as normally open contact
-
1
-
Modular version
-
TRUE
-
Operating voltage AC 50 Hz
-
440 Volt
-
Depth
-
119
-
Operating voltage AC 60 Hz
-
440 Volt
-
Rated operation power NEMA
-
22.4
-
Rated operation current Ie at AC-1, 400 V
-
60
-
Rated operation current Ie at AC-3, 400 V
-
40
-
Height
-
127
-
Rated operation current Ie at AC-4, 400 V
-
40
-
Voltage type for actuating
-
AC
-
Rated operation power at AC-4, 400 V
-
18.5
