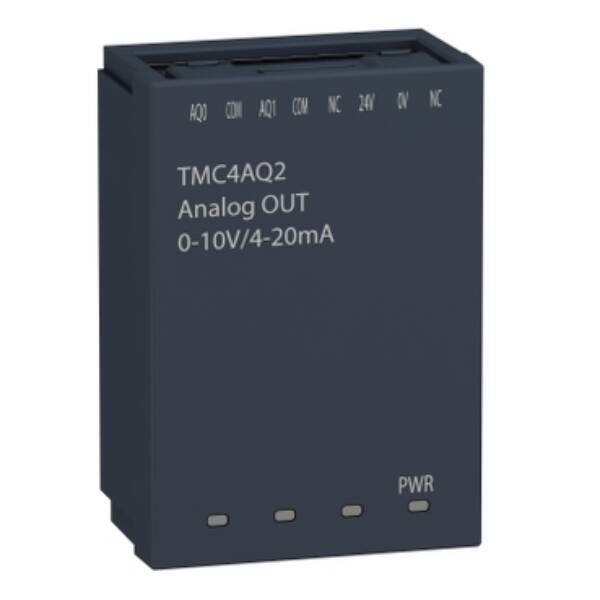

cartridge M241 - 2 analog outputs This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This analogue output cartridge is for Modicon M241 logic controllers. It provides 2 analogue current outputs with 16bit resolution. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is an insulation between output and internal logic at 500V DC and no insulation between outputs. It is furnished with spring terminal for electrical connection. Its dimensions are 34mm (Width) x 21mm (Depth) x 50mm (Height). It weighs 0.055kg. The Modicon M241 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, IACS E10, RCM, CSA, CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. This analogue output cartridge is compatible with Modicon M241C PLC. There is 1 slot for I/O cartridge on TM241C*24 . There are 2 slots for I/O cartridge on TM241C*40.

Brand

Schneider Electric

Range

Logic Controller - Modicon M241

Part No

TMC4AQ2

Weight (kg)

0.07 kg

Type

Logic Controller - Modicon M241

Input, thermocouple

FALSE

Input signal, configurable

FALSE

Type of electric connection

Screw connection

Analogue inputs configurable

FALSE

Analogue outputs configurable

FALSE

SIL according to IEC 61508

None

Input, resistor

FALSE

Input, resistance thermometer

FALSE

Input, current

FALSE

Input voltage

FALSE

Appendant operation agent (Ex ia)

FALSE

Performance level acc. EN ISO 13849-1

None

Height

50

Appendant operation agent (Ex ib)

FALSE

Category according to EN 954-1

1

Width

34

Output voltage

TRUE

Output signal configurable

FALSE

Resolution of the analogue outputs

16

Suitable for safety functions

FALSE

Output, current

TRUE

Resolution of the analogue inputs

12

Explosion safety category for dust

None

Number of analogue outputs

2

Depth

21

Explosion safety category for gas

None
