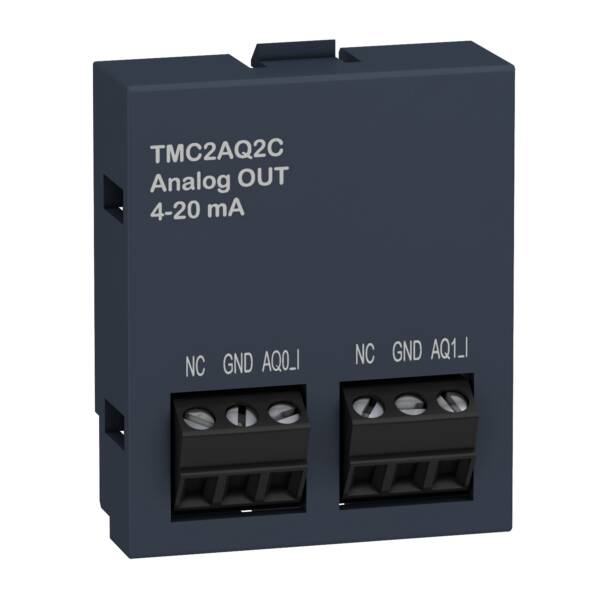

cartridge M221 - 2 analog current outputs - I/O extension This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This analog input cartridge is an option for Modicon M221C logic controller. It provides 2 current analog outputs with 12bit input resolution. The analog input type is 4…20 mA current. This product requires minimal installation and offers tremendous versatility. The input cable type is twisted shielded pairs cable. The electrical connection is 3x 1.5mm², on 2 screw terminal blocks with pitch 3.81mm adjustment for inputs. The max. cable distance between devices is lower than 30m for input. There is no insulation between analog input and internal logic. It is equipped with non removable screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards. This cartridge is compatible with Modicon M221C PLC.

Brand

Schneider Electric

Range

Logic Controller - Modicon M221

Part No

TMC2AQ2C

Weight (kg)

0.04 kg

Type

Logic Controller - Modicon M221

Input, thermocouple

FALSE

Input signal, configurable

FALSE

Type of electric connection

Screw connection

Analogue inputs configurable

FALSE

Analogue outputs configurable

FALSE

Input, resistor

FALSE

SIL according to IEC 61508

None

Input, resistance thermometer

FALSE

Input, current

FALSE

Input voltage

FALSE

Performance level acc. EN ISO 13849-1

None

Appendant operation agent (Ex ia)

FALSE

Height

41

Appendant operation agent (Ex ib)

FALSE

Category according to EN 954-1

1

Width

35

Output voltage

FALSE

Output signal configurable

FALSE

Resolution of the analogue outputs

12

Suitable for safety functions

FALSE

Resolution of the analogue inputs

12

Output, current

TRUE

Explosion safety category for dust

None

Number of analogue outputs

2

Depth

15

Explosion safety category for gas

None
