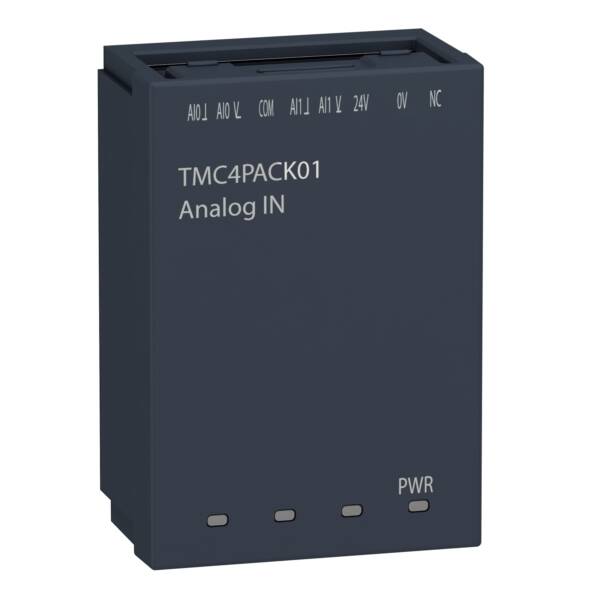

cartridge M241 - packaging 2 analog inputs This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This application cartridge is for Modicon M241 logic controllers. It provides 2 analog inputs (voltage or current) for packaging with 16bit resolution. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is an insulation between input and internal logic at 500V DC and no insulation between inputs. It is furnished with spring terminal for electrical connection. Its dimensions are 34mm (Width) x 21mm (Depth) x 50mm (Height). It weighs 0.055kg. The Modicon M241 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, IACS E10, RCM, CSA, CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. This analogue output cartridge is compatible with Modicon M241C PLC. There is 1 slot for application cartridge on TM241C*24 . There are 2 slots for application cartridge on TM241C*40.

Brand

Schneider Electric

Range

Logic Controller - Modicon M241

Part No

TMC4PACK01

Weight (kg)

0.07 kg

Type

Logic Controller - Modicon M241

Input, thermocouple

FALSE

Input signal, configurable

FALSE

Type of electric connection

Screw connection

Analogue inputs configurable

FALSE

Analogue outputs configurable

FALSE

Input, resistor

FALSE

SIL according to IEC 61508

None

Input, resistance thermometer

FALSE

Input, current

TRUE

Input voltage

TRUE

Appendant operation agent (Ex ia)

FALSE

Performance level acc. EN ISO 13849-1

None

Height

50

Appendant operation agent (Ex ib)

FALSE

Category according to EN 954-1

1

Width

34

Output voltage

FALSE

Output signal configurable

FALSE

Suitable for safety functions

FALSE

Resolution of the analogue inputs

12

Output, current

FALSE

Explosion safety category for dust

None

Number of analogue inputs

2

Depth

21

Explosion safety category for gas

None
