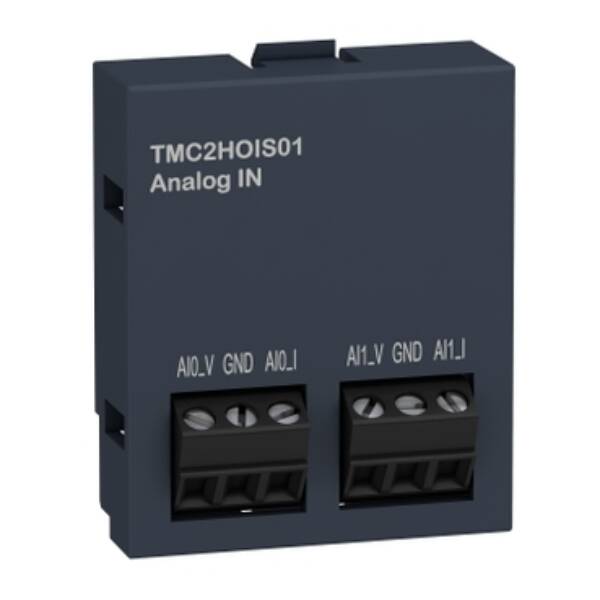

cartridge M221 - hoisting 2 analog input - I/O extension This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This application cartridge is an option for Modicon M221C logic controller. It provides 2 dedicated analog inputs for controlling a load cell in hoisting application. The analog input types are current 0 to 20 mA, 4 to 20 mA and voltage 0 to 10 v. This product requires minimal installation and offers tremendous versatility. The serial line can be configured with Modbus RTU, Modbus ASCII or ASCII protocols. There is no insulation between analog input and internal logic. It is equipped with non removable screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards. This cartridge is compatible with Modicon M221C PLC.

Brand

Schneider Electric

Range

Logic Controller - Modicon M221

Part No

TMC2HOIS01

Weight (kg)

0.02 kg

Type

Logic Controller - Modicon M221

Input, thermocouple

FALSE

Input signal, configurable

FALSE

Type of electric connection

Screw connection

Analogue inputs configurable

FALSE

Analogue outputs configurable

FALSE

Input, resistor

FALSE

SIL according to IEC 61508

None

Input, resistance thermometer

FALSE

Input, current

TRUE

Input voltage

TRUE

Appendant operation agent (Ex ia)

FALSE

Performance level acc. EN ISO 13849-1

None

Height

41

Appendant operation agent (Ex ib)

FALSE

Category according to EN 954-1

1

Width

35

Output voltage

FALSE

Output signal configurable

FALSE

Suitable for safety functions

FALSE

Resolution of the analogue inputs

12

Output, current

FALSE

Explosion safety category for dust

None

Number of analogue inputs

1

Depth

15

Explosion safety category for gas

None
