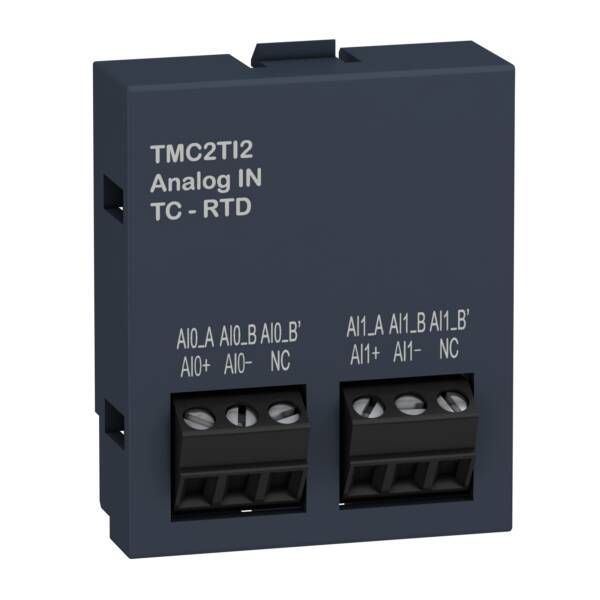

TMC2TI2

Analogue input cartridge, Modicon M221, 2 temperature inputs, I/O extension - Schneider Electric - TMC2TI2

Automation

~~List Price £77.94 +VAT~~

Our Price £62.35 +VAT

SAVE 21% OFF List Price

Estimated delivery between 7-10 working days

This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This analogue input cartridge provides 2 temperature inputs with 14bit input resolution. This product requires minimal installation and offers tremendous versatility. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is no insulation between analogue input and internal logic. It is furnished with screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This cartridge is compatible with Modicon M221C PLC. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks

Brand: Schneider Electric
Range: Logic Controller - Modicon M221
Part No: TMC2TI2
Weight (kg): 0.02 kg
Type: Logic Controller - Modicon M221
Input, thermocouple: TRUE
Input signal, configurable: FALSE
Type of electric connection: Screw connection
Analogue inputs configurable: FALSE
Analogue outputs configurable: FALSE
Input, resistor: TRUE
SIL according to IEC 61508: None
Input, resistance thermometer: FALSE
Input, current: TRUE
Input voltage: TRUE
Performance level acc. EN ISO 13849-1: None
Appendant operation agent (Ex ia): FALSE
Height: 41
Appendant operation agent (Ex ib): FALSE
Category according to EN 954-1: 1
Width: 35
Output voltage: FALSE
Resolution of the analogue outputs: 12
Output signal configurable: FALSE
Suitable for safety functions: FALSE
Resolution of the analogue inputs: 14
Output, current: FALSE
Explosion safety category for dust: None
Number of analogue inputs: 2
Depth: 15
Explosion safety category for gas: None

Datasheet for TMC2TI2 - Analogue input cartridge, Modicon M221, 2 temperature inputs, I/O extension - Schneider Electric - TMC2TI2

Download
