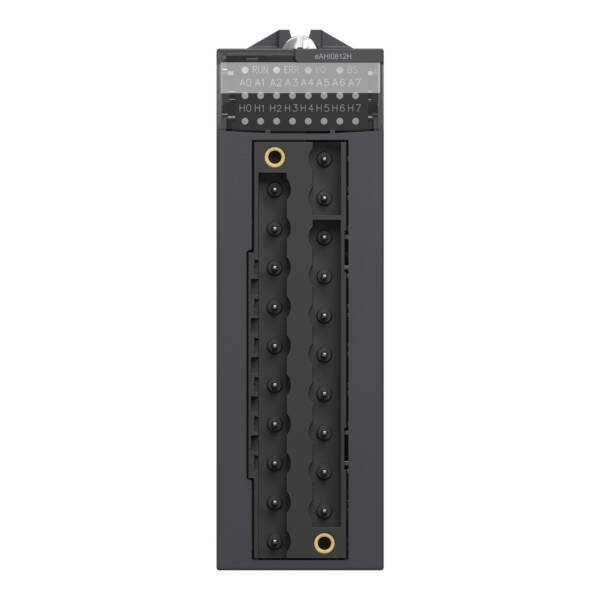

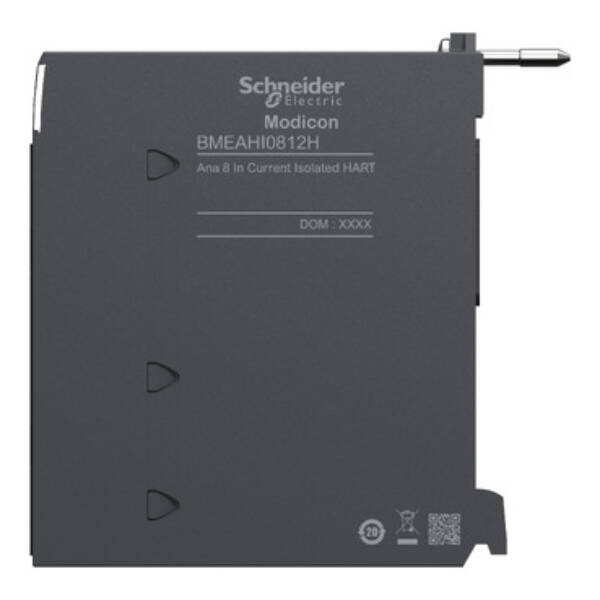

"This HART analog isolated input module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580." "This product is composed of 8 input channels." "This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F." "Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs." "This product is IP20 rated and offers 627924 hours of MTBF." "This analog module has a weight of 0.233kg and dimensions of 32x100x86mm." "This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers." "This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards." "This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block." "The product must be installed on the rack and fixed with 2 screws."

Brand

Schneider Electric

Range

Modicon X80 I/Os

Part No

BMEAHI0812H

Weight (kg)

0.24 kg

Type

Modicon X80 I/Os

Input, thermocouple

FALSE

Input signal, configurable

TRUE

Type of electric connection

Screw connection

Analogue inputs configurable

TRUE

Analogue outputs configurable

FALSE

Input, resistor

TRUE

SIL according to IEC 61508

None

Input, resistance thermometer

FALSE

Input, current

TRUE

Input voltage

TRUE

Appendant operation agent (Ex ia)

FALSE

Performance level acc. EN ISO 13849-1

None

Height

54

Appendant operation agent (Ex ib)

FALSE

Width

110

Output voltage

FALSE

Output signal configurable

FALSE

Suitable for safety functions

FALSE

Output, current

FALSE

Resolution of the analogue inputs

15

Explosion safety category for dust

Other

Number of analogue inputs

8

Depth

115

Explosion safety category for gas

Other
