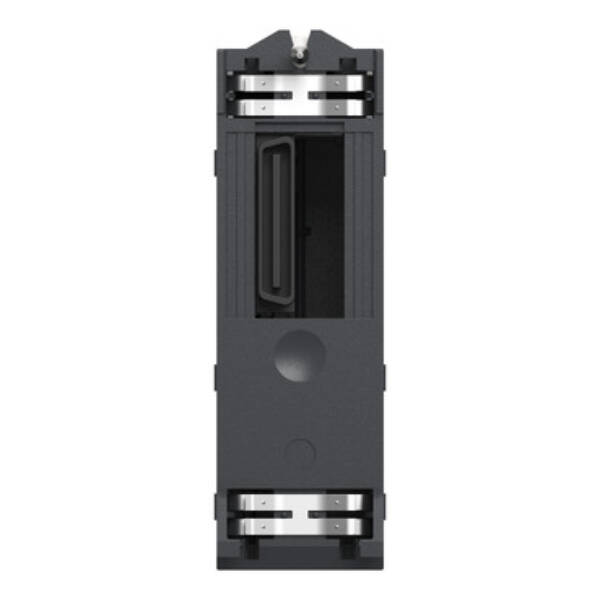

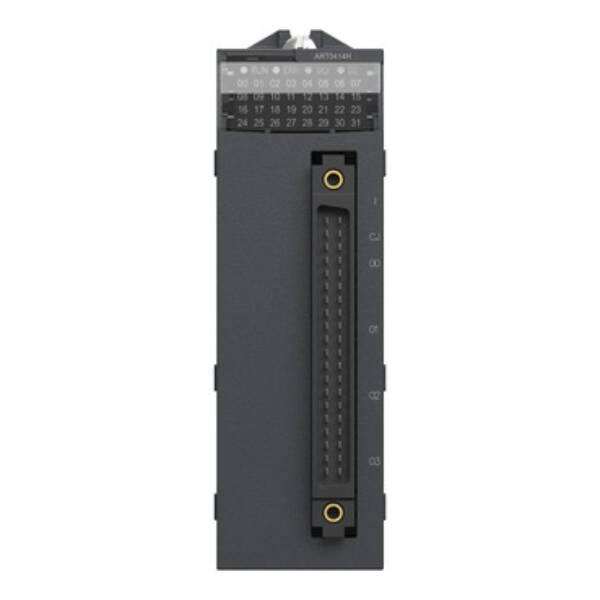

"This analog isolated input module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580." "This product is composed of 4 input channels." "This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F." "Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs." "This product is IP20 rated and offers 1409427 hours of MTBF." "This analog module has a weight of 0.135kg and dimensions of 32x100x86mm." "This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers." "This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards." "This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with one 40-way connector." "The product must be installed on the rack and fixed with 2 screws."

Brand

Schneider Electric

Range

Modicon X80 I/Os

Part No

BMXART0414H

Weight (kg)

0.17 kg

Type

Modicon X80 I/Os

Input, thermocouple

TRUE

Input signal, configurable

TRUE

Type of electric connection

Plug-in connection

Analogue inputs configurable

TRUE

Analogue outputs configurable

FALSE

SIL according to IEC 61508

None

Input, resistor

TRUE

Input, resistance thermometer

TRUE

Input, current

FALSE

Input voltage

TRUE

Performance level acc. EN ISO 13849-1

None

Appendant operation agent (Ex ia)

TRUE

Height

100

Appendant operation agent (Ex ib)

TRUE

Category according to EN 954-1

1

Width

32

Output voltage

FALSE

Output signal configurable

FALSE

Suitable for safety functions

TRUE

Resolution of the analogue inputs

16

Output, current

FALSE

Explosion safety category for dust

Other

Number of analogue inputs

4

Depth

150

Explosion safety category for gas

Other
