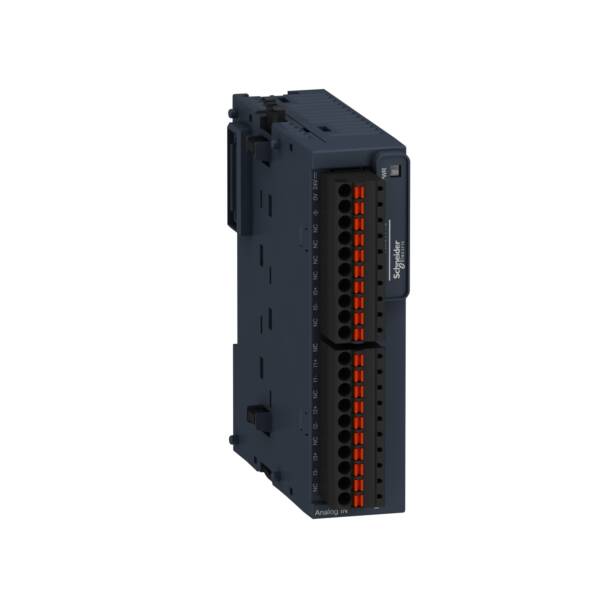

"This product is part of Modicon TM3, a range of expansion I/O modules for Modicon plcs." "This analogue input module provides 4 inputs with 16bit and 15bit + sign resolution." "It is an input module with a 24VDC rated supply voltage, a current consumption of 45mA/50mA at 5VDC via bus connector, 35mA/40mA at 24VDC via external supply." "It transfers input signals such as push-buttons, switches, temperature sensors to the plc." "There is an insulation between input and supply at 1500VAC, input and internal logic at 500VAC. It works via a 24VDC external power supply." "It is furnished with a removable spring terminal for electrical connection with pitch 3.81mm adjustment for inputs and supply." "It is an IP20-rated product. Its dimensions are 23.6mm wide, 70mm deep and 90mm high. It weighs 0.110kg" "It is designed to detect the status of input signals such as push-buttons, switches, temperature sensors." "This product is certified by CULus, CE, UKCA, RCM, EAC, and cULus HazLoc." "This module is compatible with Modicon M262/M241/M251/M221 logic controllers and is configurable with EcoStruxure machine expert software." "It is delivered in 1 package (PCE type)." "It is mounted on a symmetrical DIN rail. Or with a specific kit for plate or panel mounting." "The specially developed Modicon TM3 I/O system enables flexible and customizable expansion of the I/O terminals in all the controllers." "From design and development to commissioning and maintenance, EcoStruxure Machine Expert is a complete machine-building solution."

Brand

Schneider Electric

Range

Modicon TM3

Part No

TM3TI4DG

Weight (kg)

0.20 kg

Type

Modicon TM3

Input, thermocouple

TRUE

Input signal, configurable

FALSE

Type of electric connection

Spring clamp connection

Analogue inputs configurable

TRUE

Analogue outputs configurable

FALSE

Input, resistor

TRUE

SIL according to IEC 61508

None

Input, resistance thermometer

FALSE

Input, current

TRUE

Input voltage

TRUE

Appendant operation agent (Ex ia)

FALSE

Performance level acc. EN ISO 13849-1

None

Height

90

Appendant operation agent (Ex ib)

FALSE

Category according to EN 954-1

1

Width

23.6

Output voltage

FALSE

Output signal configurable

FALSE

Resolution of the analogue outputs

12

Suitable for safety functions

FALSE

Output, current

FALSE

Resolution of the analogue inputs

16

Explosion safety category for dust

None

Number of analogue inputs

4

Depth

70

Explosion safety category for gas

None
