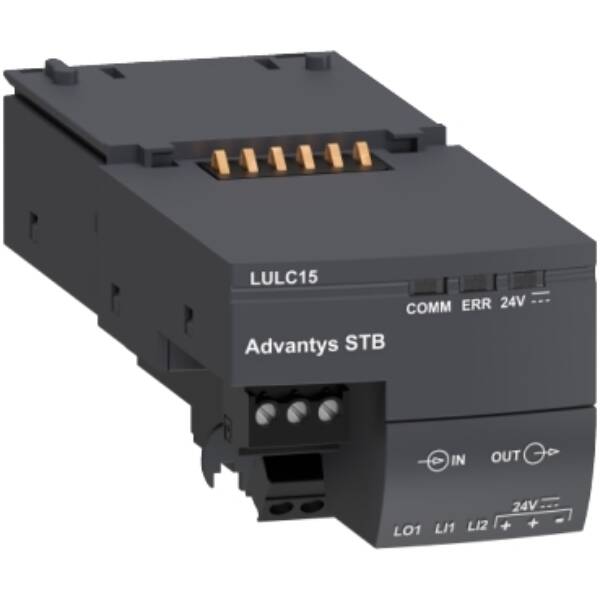

advantys STB communication module - for TeSys U - 24 V DC - Schneider Electric - LULC15
advantys STB communication module - for TeSys U - 24 V DC - Schneider Electric - LULC15

LULC15

advantys STB communication module - for TeSys U - 24 V DC - Schneider Electric - LULC15

Control

List Price £188.12 +VAT

Our Price £141.09 +VAT

SAVE 25% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
TeSys U communication module for Advantys STB, to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a BL type (24V DC) LUC control unit. It provides 2 FireWire IEEE 1394 for connection to an Advantys STB line, a plug-in terminal block for the connection to an external power supply 24V DC, in addition with 2 x configurable logic inputs 24V DC and 1 x logic output 24V DC. On the bottom, a 3-point plug-in terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11L for a LUB base or LU9MRL for a LU2B base. It displays 3 LEDs indicating 24V voltage presence (24V=) and communication status (COMM, ERR). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine),
Brand
Schneider Electric
Range
TeSys Ultra
Part No
LULC15
Weight (kg)
0.11 kg
Type
TeSys U
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
None
craft\elements\db\ElementQuery
TRUE
craft\elements\db\ElementQuery
None
craft\elements\db\ElementQuery
TRUE
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
FALSE
Height
45
craft\elements\db\ElementQuery
FALSE
Width
45
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
None
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
FALSE
Depth
110
craft\elements\db\ElementQuery
None
craft\elements\db\ElementQuery
FALSE
Supporting protocol for EtherNet/IP
FALSE
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
DC
craft\elements\db\ElementQuery
FALSE
Supporting protocol for PROFINET IO
FALSE
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
FALSE
Supporting protocol for PROFIBUS
FALSE
Supporting protocol for TCP/IP
FALSE
craft\elements\db\ElementQuery
TRUE
craft\elements\db\ElementQuery
FALSE
Degree of protection (IP)
IP20
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
TRUE
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
FALSE
Supporting protocol for MODBUS
FALSE
Suitable for safety functions
FALSE
craft\elements\db\ElementQuery
FALSE
Supply voltage DC
24 V
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
FALSE

Datasheet for LULC15 - advantys STB communication module - for TeSys U - 24 V DC - Schneider Electric - LULC15
