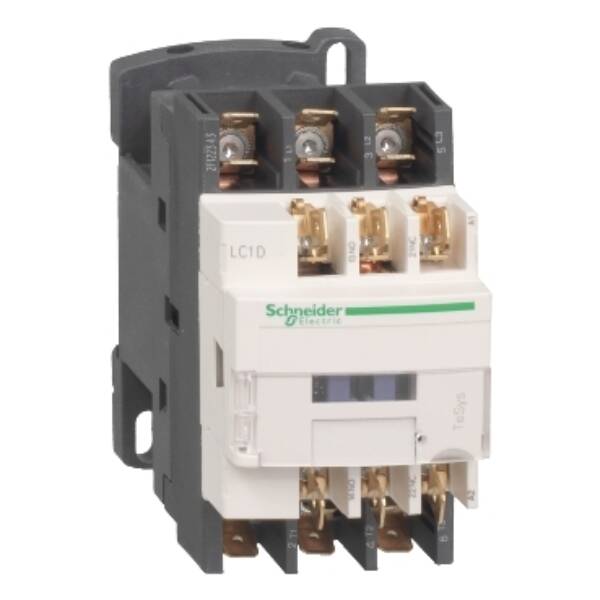

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 120 V AC coil - Schneider Electric - LC1D099G7
TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 120 V AC coil - Schneider Electric - LC1D099G7

LC1D099G7

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 120 V AC coil - Schneider Electric - LC1D099G7

Control

List Price £48.51 +VAT

Our Price £36.38 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days
Get in touch
"TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V)." and for non-inductive load control applications up to 25A@60℃ in category AC-1. It provides a 120V AC 50/60Hz standard AC coil,1NO/1NC built-in auxiliary contact, connection by faston connectors. For operating rates until 3600 cycles/hour and environments until 60°C, it procures reliability and durability to standard applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EN).
Brand
Schneider Electric
Range
TeSys Deca contactors
Part No
LC1D099G7
Weight (kg)
0.33 kg
Type
TeSys Deca contactors
Type of electrical connection of main circuit
Flat plug-in connection
Rated control supply voltage Us at AC 50HZ
120 V
Rated control supply voltage Us at AC 60HZ
120 V
Rated operation power at AC-3, 400 V
4
Number of main contacts as normally open contact
3
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
1
Modular version
FALSE
Rated operation current Ie at AC-1, 400 V
25
Rated operation current Ie at AC-4, 400 V
6
Voltage type for actuating
AC
Rated operation current Ie at AC-3, 400 V
9
Rated operation power at AC-4, 400 V
2.2

Datasheet for LC1D099G7 - TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 120 V AC coil - Schneider Electric - LC1D099G7
