Actassi - ventilation plate with 2 cut-outs with fan - Schneider Electric - NSYECVT2V440

Actassi - ventilation plate with 2 cut-outs with fan - Schneider Electric - NSYECVT2V440

NSYECVT2V440

Actassi - ventilation plate with 2 cut-outs with fan - Schneider Electric - NSYECVT2V440

Enclosures

~~List Price £231.15 +VAT~~

Our Price £173.36 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

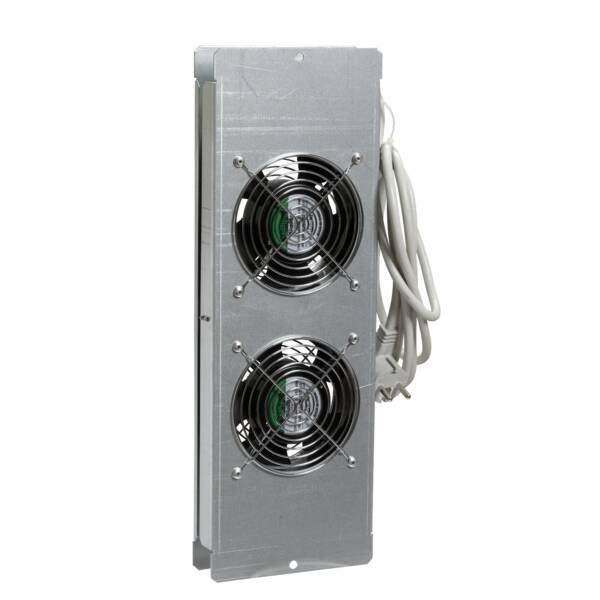

This product is a blanking plate with fans to be fixed on the the internal surface of the base or roof or on a 6U knock-out panel of the reduced rear door. Equipped with 2 fans, free flow of 170 m3/h each, 220 V-50/60 Hz, installed wired with terminal board. A 3-m power cord is supplied.

Brand: Schneider Electric
Range: PanelSeT SF
Part No: NSYECVT2V440
Weight (kg): 3.35 kg
Type: Spacial SF
Suitable for 19 inch rack mounting: FALSE
Colour: Grey
Width: 420
Air circulator: FALSE
Voltage type: AC
Mounting method: Screw mounting
Operating voltage at AC 50 Hz: 220 V
Wall build in: FALSE
Operating voltage at AC 60 Hz: 220 V
Built as slide-in ventilator: FALSE
EMC-version: FALSE
Degree of protection (IP): IP20
Roof ventilator: TRUE
With filter: FALSE
Number of fans: 2
Rated power: 22
Volume flow, freeblowing: 170

Datasheet for NSYECVT2V440 - Actassi - ventilation plate with 2 cut-outs with fan - Schneider Electric - NSYECVT2V440

Download
