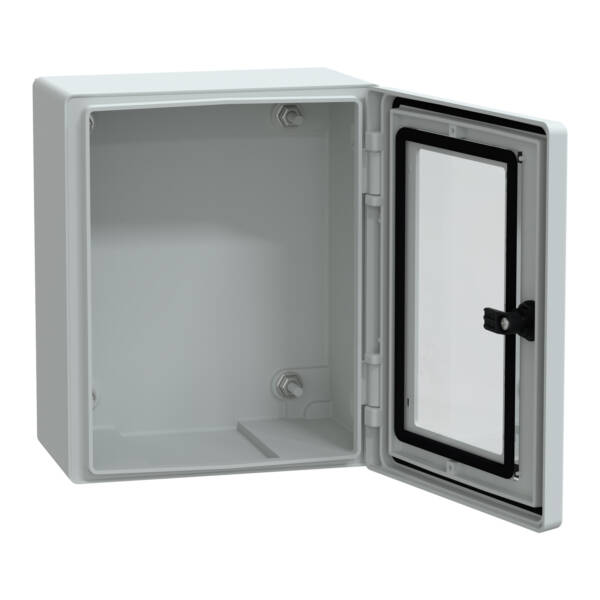

This PanelSeT PLM (formerly PanelSeT PLM) is a wall-mounted enclosure that is suitable for multi-purpose applications. The enclosure has a nominal height, width, and depth of 308 mm, 255 mm, and 160 mm, respectively. It is made of polyester reinforced with fiberglass, which offers durability and resistance to industrial, harsh and outdoor environments. The polyester material is made with 37% of recycled material content. Its packaging is made of 75% recycled carboard and without single-use plastic. The enclosure comes in a grey (RAL 7035) color. The enclosure consists of one body, one door, and one lock. The door is transparent and can be opened from the front with a 3 mm double-bar lock. The enclosure offers high protection against dust and water with an IP66 rating (IEC 60529). It is also highly resistant to impacts, with an IK08 rating (IEC 62262), and offers protection against electric shocks with a class II electrical insulation rating. The enclosure is UL certified and can be stored in ambient air temperatures ranging from -40 to 80°C without affecting its performance. The enclosure is also fire resistant up to 960 °C (IEC 62208) and meets NEMA classification 13 and 4X standards, as well as IEC 62208.

Brand

Schneider Electric

Range

PanelSeT PLM GRP Enclosures

Part No

NSYPLM3025TG

Weight (kg)

3.34 kg

Type

Thalassa PLM GRP Enclosures

Couplable

FALSE

With mounting plate

FALSE

Freestanding

FALSE

With glazed door

TRUE

With cover

FALSE

RAL-number

7035

Transparent cover

FALSE

Height

308

Degree of protection (IP)

IP66

Pitched roof

FALSE

Colour

Grey

Width

255

Intermediate mounting

FALSE

Surface finishing

Untreated

Number of doors

1

Material

Plastic

Corner model

FALSE

Number of locks

1

Suitable for outdoor set-up

TRUE

Suitable for wall mounting

TRUE

Material quality

Polyester (PET)

Depth

160

Suitable for wall built-in

TRUE

Pre-stamping

FALSE

Max. permissible load of the mounting plate according to IEC 62208

74

With door

TRUE

Mounting plate depth-adjustable

TRUE

Impact strength

IK08

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

4X

With rear door

FALSE

Pole fastening

TRUE

Max. permissible load of the enclosure according to IEC 62208

105
