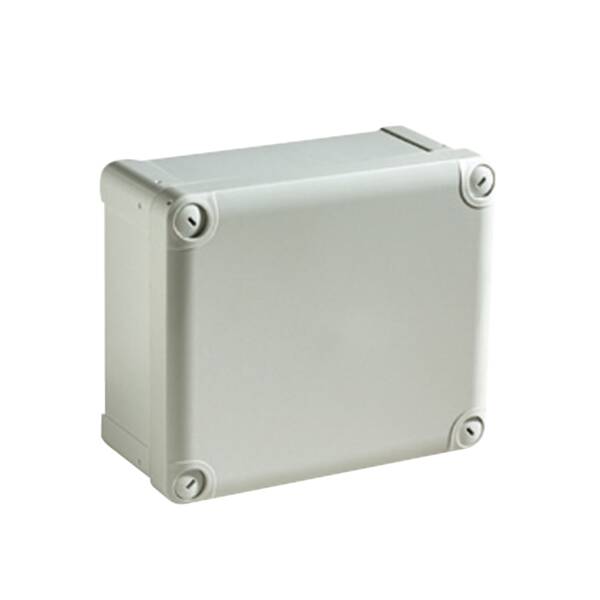

ABS box IP66 IK07 RAL7035 Int.H225W175D100 Ext.H241W194D105 Opaque cover H20 - Schneider Electric - NSYTBS241910H

ABS box IP66 IK07 RAL7035 Int.H225W175D100 Ext.H241W194D105 Opaque cover H20 - Schneider Electric - NSYTBS241910H

NSYTBS241910H

ABS box IP66 IK07 RAL7035 Int.H225W175D100 Ext.H241W194D105 Opaque cover H20 - Schneider Electric - NSYTBS241910H

Enclosures

~~List Price £24.31 +VAT~~

Our Price £18.23 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

ABS industrial box for PanelSeT TBS. Multi purpose. 241 x 194 x 107 mm. Wall mounted on enclosure. One piece moulded. Lock by Captive screw flat outside sealed area. Cover fixing by 4 plastic screws. Protection IP 66, IK07, electrical insulation class 2.

Brand: Schneider Electric
Range: Enclosures
Part No: NSYTBS241910H
Weight (kg): 0.70 kg
Type: Enclosures
Surface protection: Untreated
With mounting plate: FALSE
Type of cover: Cover
Extension possible: FALSE
Suitable for lightning protection: TRUE
RAL-number: 7035
Type of door: None
Height: 241
Internal depth: 100
Degree of protection (IP): IP66
Transparent cover/door: FALSE
Cover model: Closed
Plate thickness cabinet: 2.4
Plate thickness door/cover: 2.4
Colour: Grey
Circuit integrity: None
Width: 194
Suitable for outdoor use: TRUE
Material housing: Plastic
Mounting method: Surface mounted (plaster)
Protection class: II
Depth: 107
With lock: FALSE
Impact strength: IK07

Datasheet for NSYTBS241910H - ABS box IP66 IK07 RAL7035 Int.H225W175D100 Ext.H241W194D105 Opaque cover H20 - Schneider Electric - NSYTBS241910H

Download
