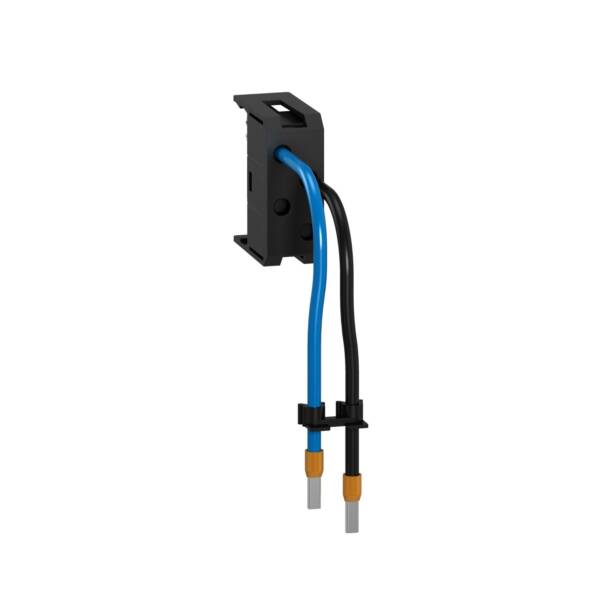

PLUG BI 32A FIL LG 1000MM - Schneider Electric - AK5PC32L

PLUG BI 32A FIL LG 1000MM - Schneider Electric - AK5PC32L

AK5PC32L

PLUG BI 32A FIL LG 1000MM - Schneider Electric - AK5PC32L

Enclosures

~~List Price £21.95 +VAT~~

Our Price £16.46 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

Linergy 1P + N plug outlet. It provides 1P+N, 1 point and 2 cables with 4 mm². The conventional free air thermal current is 32A. Sold in lots of 6 units. It conforms to IEC 60439 standard. Multi standards certified (CSA, DNV, UL, LROS (Lloyds register of shipping). It is compliant with Green Premium (RoHS/REACH).

Brand: Schneider Electric
Range: Linergy HK
Part No: AK5PC32L
Weight (kg): 0.10 kg
Length: 18
Colour: Grey
Width: 38
Protection: None
Number of conductors (without earthing): 2
With adjustment: TRUE
Phase selection: FALSE
RAL-number: 7021
Rated current at AC 50 Hz: 32
Number of poles: 1
Type of socket outlets: Other
Branch off type: Cable
Height: 46
Rated voltage at AC 50 Hz: 400…690 V
Degree of protection (IP): IP20

Datasheet for AK5PC32L - PLUG BI 32A FIL LG 1000MM - Schneider Electric - AK5PC32L

Download
