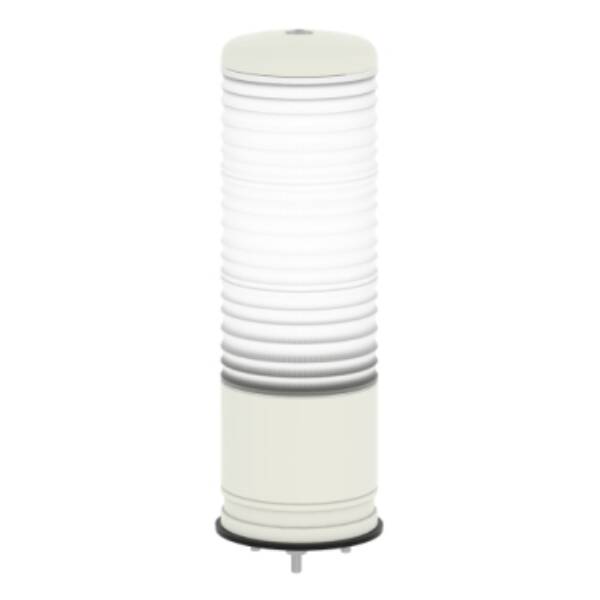

This monolithic tower light is part of the range of pre-assembled and pre-cabled tower lights Harmony type XVC diameter 60mm. It is supplied pre-assembled and pre-cabled with 3 illuminated signaling units (red, orange, green) and a base for mounting on horizontal surface. It also features a buzzer with continuous or intermittent tone and adjustable sound level from 70db to 85db at 1 m, + flashing light. It is designed for long distance indication of the operating states of a machine, visually by means of illuminated signaling units visible through 360°. It features LED for steady or flashing light source, and it can be supplied with 24 V AC/DC. Its protection index is IP54. It provides PC (polycarbonate) illuminated unit, ABS base unit and PBT + ABS (UL94HB) top cover. It weighs 300g and it is 201mm high. It is used mainly in the semi-conductor factories, on conveyor belts and on small food or drink dispensing machines in the commercial sector. It is CE and UL certified. It is designed to be mounted on horizontal surface thanks to its base fitted with 3 screws.

Brand

Schneider Electric

Range

Harmony XVC

Part No

XVC6B35SK

Weight (kg)

0.53 kg

Type

Harmony XVC

Function continuous light

TRUE

Colour light 3

Green

Colour light 2

Orange

Flashing light

TRUE

Loudness

85

Outer diameter

60

Operating voltage AC 50 Hz

24 Volt

Function acoustic

TRUE

Operating voltage AC 60 Hz

24 Volt

Function flashlight

TRUE

Operating voltage DC

24 Volt

Voltage type (operating voltage)

AC/DC

Height

200.8

Degree of protection (IP)

IP54

Number of signal tower elements

3

Colour light 1

Red
