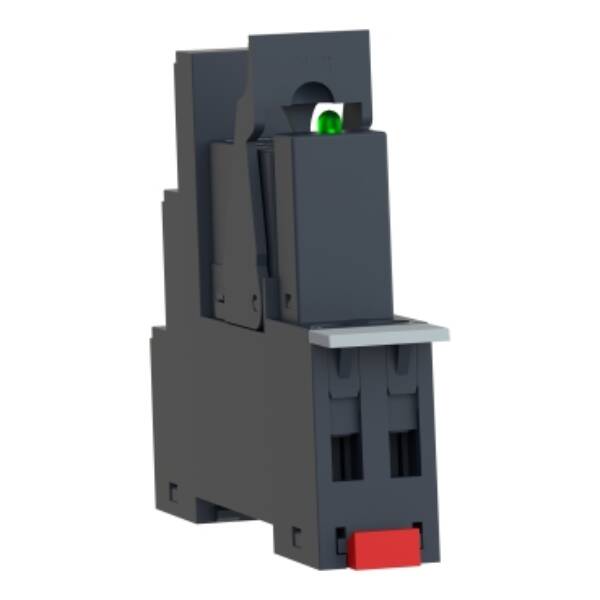

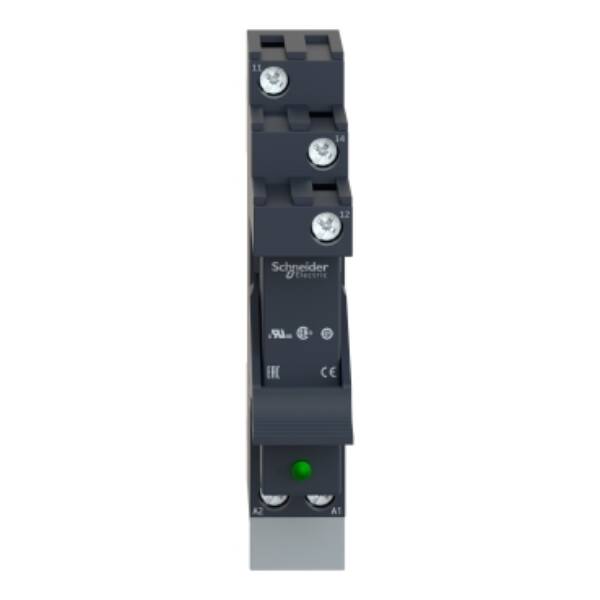

This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled electromechanical relay mounted on a separate contact terminal socket with diode protection module and maintaining clamp. This is a 12A, 24Vac, 1 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The protection module comes with a green LED indicator. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.050Kg. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. Product and conforms to international standard and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. This RSB plug-in relay range comprises of 12A relays with 1 CO contact, 16A relays with 1 CO contact, and 8A relays with 2 CO contacts.

Brand

Schneider Electric

Range

Harmony Electromechanical Relays

Part No

RSB1A120B7PV

Weight (kg)

0.05 kg

Type

Harmony Electromechanical Relays

Width

64

Rated control supply voltage Us at AC 50HZ

0…24 V

craft\elements\db\ElementQuery

0…24 V

craft\elements\db\ElementQuery

Plug-in connection

craft\elements\db\ElementQuery

Mono stable

craft\elements\db\ElementQuery

FALSE

craft\elements\db\ElementQuery

12

craft\elements\db\ElementQuery

TRUE

craft\elements\db\ElementQuery

Polarity free

craft\elements\db\ElementQuery

Other

Depth

15

craft\elements\db\ElementQuery

TRUE

craft\elements\db\ElementQuery

1

Height

84

craft\elements\db\ElementQuery

AC

Degree of protection (IP)

IP20

craft\elements\db\ElementQuery

TRUE
