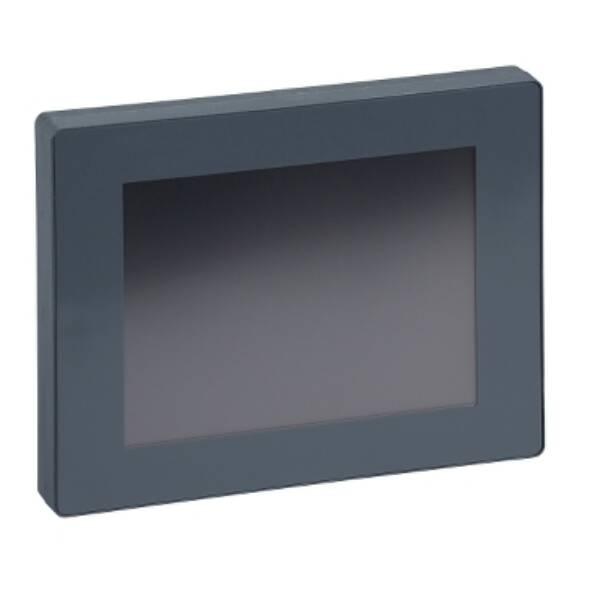

This product is part of the Harmony SCU range, an offer of HMI controllers from 3.5 to 5.7inch colour screens. The HMI small touchscreen features 5.7inch QVGA backlit LED colour TFT LCD display and supports 320 x 240 pixels resolution. It supports Taiwanese (traditional Chinese), Japanese (ANK, Kanji), Korean, ASCII and Chinese (simplified Chinese) character fonts. It supports 65536 colours with 50000 hours of backlight lifespan. The analogue touch panel with 16 levels brightness provides four viewing angles 60° left, 60° right, 40° top, 60° bottom in horizontal x vertical. Its dimensions are 163mm (width) x 129.4mm (depth) and weighs 0.405kg. The integrated design of Harmony SCU delivers maximum functionality while keeping installation easy. Designed for small machines and simple processes control, its state-of-the-art display provides clear readability. The Harmony SCU (formerly known as Magelis SCU) is designed to operate with EcoStruxure™ Machine Expert. It offers functionality for control of small machines and simple processes, while saving up to 30% in installation and ownership costs.

Brand

Schneider Electric

Range

Harmony SCU

Part No

HMIS85W

Weight (kg)

0.70 kg

Type

Harmony SCU

With message indication

TRUE

Supporting protocol for SERCOS

FALSE

Number of HW-interfaces other

1

Number of HW-interfaces USB

2

Useful project memory/user memory

128000

With numeric keyboard

FALSE

Number of grey-scales/blue-scales of display

16

With alpha numeric keyboard

FALSE

Radio standard GPRS

FALSE

With message system (incl. buffer and confirmation)

TRUE

Process value representation (output) possible

TRUE

Supporting protocol for INTERBUS-Safety

FALSE

Type of display

TFT

With printer output

FALSE

Process default value (input) possible

TRUE

With recipes

TRUE

Supporting protocol for AS-Interface Safety at Work

FALSE

Radio standard GSM

FALSE

Degree of protection (IP), front side

IP65/IP67

Radio standard UMTS

FALSE

Number of online languages

8

Additional software components, loadable

TRUE

Touch technology

Resistive touch

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

TRUE

Supporting protocol for Foundation Fieldbus

FALSE

With SW interfaces

FALSE

Operation temperature

0…50 °C

Screen diagonal

5.7

Built-in depth

76.22

Supporting protocol for SafetyBUS p

FALSE

Voltage type of supply voltage

AC/DC

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Supporting protocol for ASI

FALSE

Radio standard Bluetooth

FALSE

Supporting protocol for PROFIBUS

FALSE

Radio standard WLAN 802.11

FALSE

Supporting protocol for TCP/IP

TRUE

Number of pixels, horizontal

320

Supporting protocol for KNX

FALSE

Supporting protocol for CAN

TRUE

With colour display

TRUE

Number of colours of the display

65000

IO link master

TRUE

Supporting protocol for INTERBUS

FALSE

Supporting protocol for DeviceNet

FALSE

Rail mounting possible

FALSE

Suitable for safety functions

FALSE

Width of the front

163

Supporting protocol for MODBUS

TRUE

Supporting protocol for Data-Highway

FALSE

Height of the front

129.4

Supply voltage DC

24 V

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

TRUE

Supporting protocol for SUCONET

FALSE

Wall mounting/direct mounting

TRUE

Number of pixels, vertical

240

Number of HW-interfaces RS-485

1

Number of HW-interfaces industrial Ethernet

1

Number of HW-interfaces RS-232

1
