12W Touch Advanced Display WXGA - Schneider Electric - HMIDT651

12W Touch Advanced Display WXGA - Schneider Electric - HMIDT651

HMIDT651

12W Touch Advanced Display WXGA - Schneider Electric - HMIDT651

Automation

~~List Price £1,873.16 +VAT~~

Our Price £1,592.19 +VAT

SAVE 15% OFF List Price

Estimated delivery between 7-10 working days

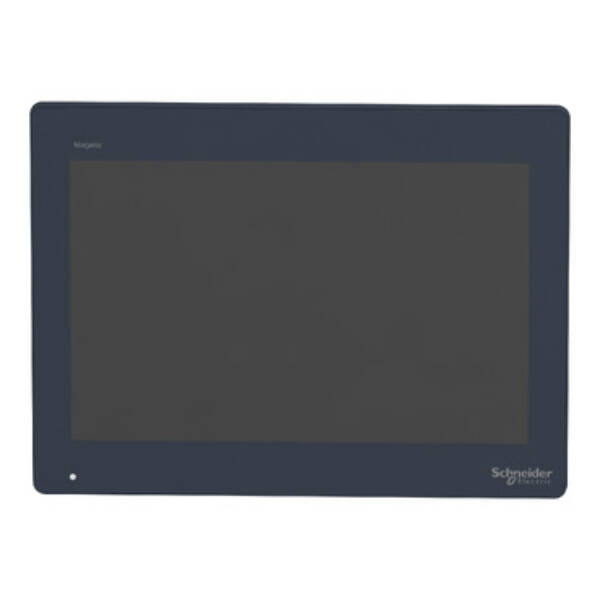

This Magelis GTU universal touchscreen operator interface (HMI) is supplied with 12V to 24V DC, has a 12" color TFT LCD display with 1280 x 800 pixels and 262K colors. This universal touchscreen operator interface (HMI) is ideal for high-performance monitoring and communication. High-performance monitoring and communication thanks to a smartphone-like interface for use in the most demanding automation systems, including industrial control equipments, hazardous locations, and marine applications. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. It also offers removable storage, dual LAN and dual communication interfaces. It resists permanent 60°C temperature, this makes it ideal for installation in areas where ventilation of the cabinet is not possible or risky.

Brand: Schneider Electric
Range: Harmony GTU
Part No: HMIDT651
Weight (kg): 4.60 kg
Type: Harmony GTU
With message indication: FALSE
Supporting protocol for SERCOS: FALSE
With numeric keyboard: FALSE
With alpha numeric keyboard: FALSE
Degree of protection (NEMA), front side: 4X
Radio standard GPRS: FALSE
With message system (incl. buffer and confirmation): FALSE
Process value representation (output) possible: FALSE
Supporting protocol for INTERBUS-Safety: FALSE
Type of display: LCD
With printer output: FALSE
Process default value (input) possible: FALSE
Supporting protocol for AS-Interface Safety at Work: FALSE
With recipes: FALSE
Degree of protection (IP), front side: IP66
Radio standard GSM: FALSE
Radio standard UMTS: FALSE
Additional software components, loadable: FALSE
Touch technology: Resistive touch
Supporting protocol for DeviceNet Safety: FALSE
Supporting protocol for EtherNet/IP: FALSE
Supporting protocol for Foundation Fieldbus: FALSE
With SW interfaces: FALSE
Operation temperature: 0…60 °C
Screen diagonal: 7
Supporting protocol for SafetyBUS p: FALSE
Voltage type of supply voltage: DC
Supporting protocol for PROFINET CBA: FALSE
Supporting protocol for PROFINET IO: FALSE
Supporting protocol for PROFIsafe: FALSE
Supporting protocol for ASI: FALSE
Radio standard Bluetooth: FALSE
Radio standard WLAN 802.11: FALSE
Supporting protocol for PROFIBUS: FALSE
Supporting protocol for TCP/IP: FALSE
Supporting protocol for KNX: FALSE
Number of pixels, horizontal: 800
Supporting protocol for CAN: FALSE
With colour display: TRUE
IO link master: FALSE
Number of colours of the display: 262144
Supporting protocol for INTERBUS: FALSE
Rail mounting possible: FALSE
Supporting protocol for DeviceNet: FALSE
Suitable for safety functions: FALSE
Supporting protocol for MODBUS: FALSE
Supporting protocol for Data-Highway: FALSE
Supply voltage DC: 12…24 V
Supporting protocol for LON: FALSE
Supporting protocol for other bus systems: FALSE
Supporting protocol for SUCONET: FALSE
Wall mounting/direct mounting: FALSE
Number of pixels, vertical: 480

Datasheet for HMIDT651 - 12W Touch Advanced Display WXGA - Schneider Electric - HMIDT651

Download
