HMIG3U

Premium BOX for Universal Panel - Schneider Electric - HMIG3U

Automation

~~List Price £1,001.67 +VAT~~

Our Price £851.42 +VAT

SAVE 15% OFF List Price

Estimated delivery between 7-10 working days

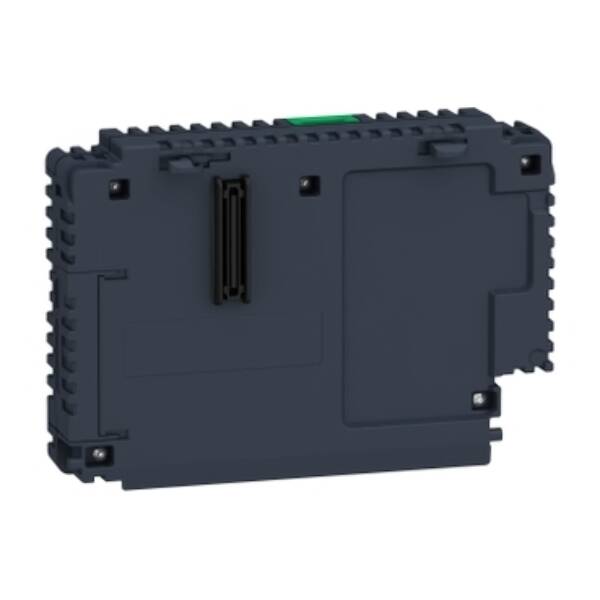

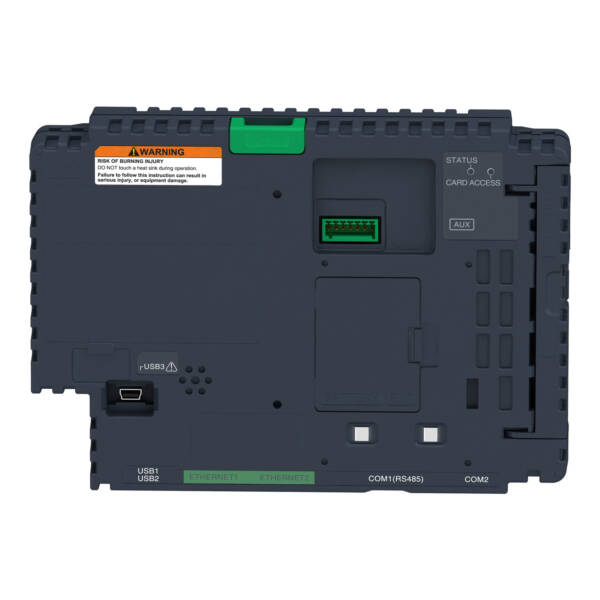

This Magelis GTU premium box module has 256MB of RAM, a RISC CPU, 2 SD card slots, including a 1GB pre-installed card. It also has 2 host + 1 mini-B USB ports, 1 RS232C/RS422/RS485 port, 1 RS485 port and 1 Ethernet TCP/IP port. This universal premium box is designed for building advanced HMI systems together with Magellis universal GTU panels. It also offers a LED power indicator and a lock button to attach the box module and display. It has high performance RISC CPU for low latency display and automation. Its RS485 and Ethernet ports, ideal to supervise and control complex systems and machines.

Brand: Schneider Electric
Range: Harmony GTU
Part No: HMIG3U
Weight (kg): 1.26 kg
Type: Harmony GTU
With message indication: FALSE
Supporting protocol for SERCOS: FALSE
With numeric keyboard: FALSE
With alpha numeric keyboard: FALSE
Degree of protection (NEMA), front side: 4X
Radio standard GPRS: FALSE
With message system (incl. buffer and confirmation): FALSE
Process value representation (output) possible: FALSE
Supporting protocol for INTERBUS-Safety: FALSE
Type of display: LCD
With printer output: FALSE
Process default value (input) possible: FALSE
Supporting protocol for AS-Interface Safety at Work: FALSE
With recipes: FALSE
Degree of protection (IP), front side: IP66
Radio standard GSM: FALSE
Radio standard UMTS: FALSE
Additional software components, loadable: FALSE
Supporting protocol for DeviceNet Safety: FALSE
Touch technology: Resistive touch
Supporting protocol for EtherNet/IP: FALSE
Supporting protocol for Foundation Fieldbus: FALSE
With SW interfaces: FALSE
Operation temperature: 0…60 °C
Screen diagonal: 7
Supporting protocol for SafetyBUS p: FALSE
Voltage type of supply voltage: DC
Supporting protocol for PROFINET CBA: FALSE
Supporting protocol for PROFINET IO: FALSE
Supporting protocol for PROFIsafe: FALSE
Supporting protocol for ASI: FALSE
Radio standard Bluetooth: FALSE
Radio standard WLAN 802.11: FALSE
Supporting protocol for PROFIBUS: FALSE
Supporting protocol for TCP/IP: FALSE
Supporting protocol for KNX: FALSE
Number of pixels, horizontal: 800
Supporting protocol for CAN: FALSE
With colour display: TRUE
IO link master: FALSE
Number of colours of the display: 262144
Supporting protocol for INTERBUS: FALSE
Rail mounting possible: FALSE
Supporting protocol for DeviceNet: FALSE
Supporting protocol for MODBUS: FALSE
Suitable for safety functions: FALSE
Supporting protocol for Data-Highway: FALSE
Supply voltage DC: 12…24 V
Supporting protocol for LON: FALSE
Supporting protocol for other bus systems: FALSE
Supporting protocol for SUCONET: FALSE
Wall mounting/direct mounting: FALSE
Number of pixels, vertical: 480

Datasheet for HMIG3U - Premium BOX for Universal Panel - Schneider Electric - HMIG3U

Download
