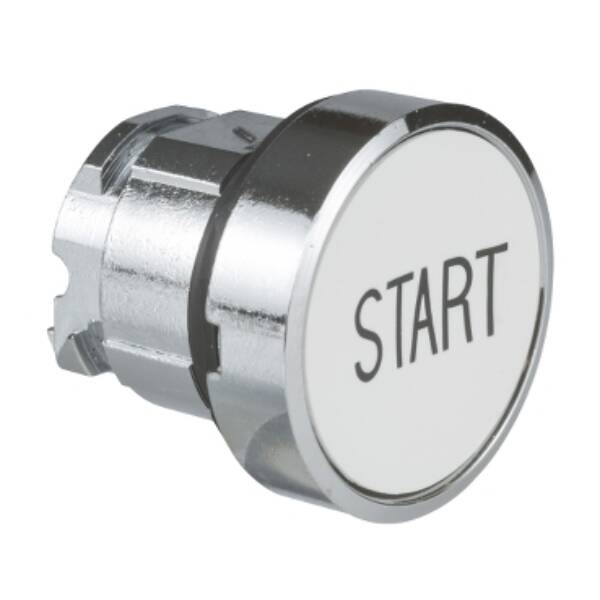

This Harmony XB4, flush white button head operates with a spring return / impulse mechanism. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and marking. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Brand
Schneider Electric
Range
Harmony XB4
Part No
ZB4BA133
Weight (kg)
0.03 kg
Type
Harmony XB4
Labelled
TRUE
Spring-return
TRUE
Colour front ring
Chrome
With protective cover
FALSE
Hole diameter
22.5
Material front ring
Metal
Degree of protection (IP), front side
IP66
Switching function latching
FALSE
Type of button
Flat
Construction type lens
Round
Colour button
White
Degree of protection (NEMA), front side
Other
With front ring
TRUE
Suitable for illumination
FALSE
Number of command positions
1
Datasheet for ZB4BA133 - white flush pushbutton head Ø22 spring return "START" - Schneider Electric - ZB4BA133
