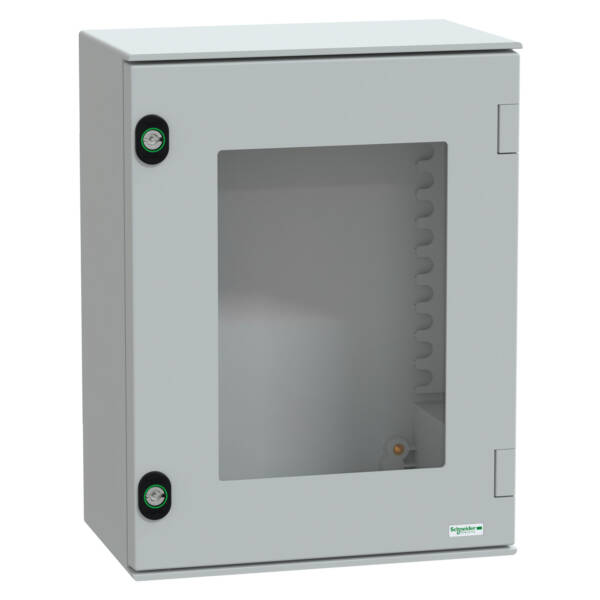

wall-mounting enclosure polyester monobloc IP66 H430xW330xD200mm glazed door - Schneider Electric - NSYPLM43TG

wall-mounting enclosure polyester monobloc IP66 H430xW330xD200mm glazed door - Schneider Electric - NSYPLM43TG

NSYPLM43TG

wall-mounting enclosure polyester monobloc IP66 H430xW330xD200mm glazed door - Schneider Electric - NSYPLM43TG

Enclosures

~~List Price £162.72 +VAT~~

Our Price £122.04 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

PanelSeT PLM wall-mounting polyester enclosure monobloc w/glazed door. 430 x 330 x 200 mm. Built-in canopy, one piece moulded with notches in the rear. Without mounting plate. 2 locks (3 mm double-bar lock). Accessible front. Polyester reinforced with fibreglass, tempered glass door. Grey RAL 7035. IP66, IK08, NEMA (13,4X) 960°C fire resistance.

Brand: Schneider Electric
Range: PanelSeT PLM GRP Enclosures
Part No: NSYPLM43TG
Weight (kg): 5.91 kg
Type: Thalassa PLM GRP Enclosures
With mounting plate: FALSE
With glazed door: TRUE
Wall fastening possible: TRUE
RAL-number: 7035
Tackable: FALSE
Height: 430
Degree of protection (IP): IP66
Pitched roof: FALSE
Colour: Grey
Width: 330
Surface finishing: Untreated
Material: Plastic
Number of doors: 1
Suitable for outdoor set-up: TRUE
Number of locks: 2
Material quality: Polyester
Wall build in: TRUE
Depth: 200
Mounting plate depth-adjustable: TRUE
Impact strength: IK08
With ventilation door: FALSE
EMC-version: FALSE
Degree of protection (NEMA): 4X
Pole fastening: TRUE
With backside door: FALSE
Floor installation possible: FALSE

Datasheet for NSYPLM43TG - wall-mounting enclosure polyester monobloc IP66 H430xW330xD200mm glazed door - Schneider Electric - NSYPLM43TG

Download
