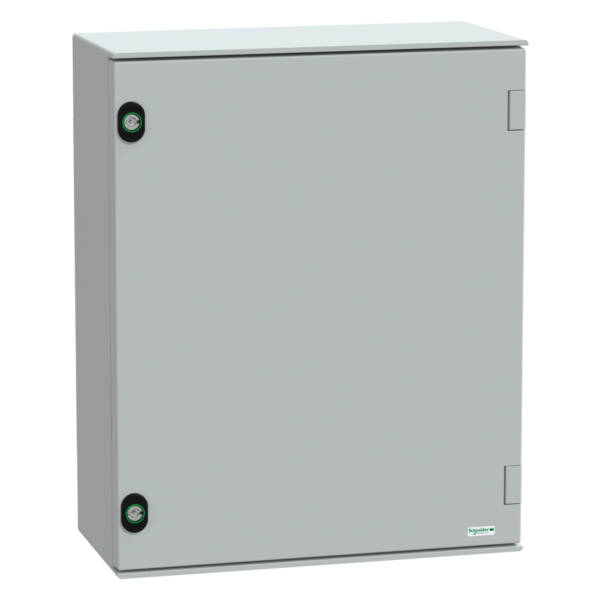

wall-mounting encl. polyester monobloc IP66 H530xW430xD200mm+metal mount.plate - Schneider Electric - NSYPLM54PG

wall-mounting encl. polyester monobloc IP66 H530xW430xD200mm+metal mount.plate - Schneider Electric - NSYPLM54PG

NSYPLM54PG

wall-mounting encl. polyester monobloc IP66 H530xW430xD200mm+metal mount.plate - Schneider Electric - NSYPLM54PG

Enclosures

~~List Price £185.07 +VAT~~

Our Price £138.80 +VAT

SAVE 26% OFF List Price

Estimated delivery between 7-10 working days

"This PLM is a wall-mounted enclosure that is suitable for multi-purpose applications" "The enclosure has a nominal height, width, and depth of 530 mm, 430 mm, and 200 mm, respectively" "It is made of polyester reinforced with fibreglass, offering strength and durability" "The enclosure comes in a grey (RAL 7035) color" "The enclosure consists of one body, one door, one mounting plate, and two locks" "The door is plain and can be opened from the front using two 3 mm double-bar locks" "The mounting plate is made of plain steel and is removable by a fixing element" "The enclosure offers high protection against dust and water with an IP66 rating (IEC 60529)" "It is also highly resistant to impacts, with an IK10 rating (IEC 62262), and offers protection against electric shocks with a class II electrical insulation rating" "The enclosure is UL certified and can be stored in ambient air temperatures ranging from -40 to 80°C without affecting its performance"

Brand: Schneider Electric
Range: PanelSeT PLM GRP Enclosures
Part No: NSYPLM54PG
Weight (kg): 9.74 kg
Type: Thalassa PLM GRP Enclosures
With mounting plate: TRUE
With glazed door: FALSE
Wall fastening possible: TRUE
RAL-number: 7035
Tackable: FALSE
Height: 530
Degree of protection (IP): IP66
Pitched roof: FALSE
Colour: Grey
Width: 430
Surface finishing: Untreated
Number of doors: 1
Material: Plastic
Suitable for outdoor set-up: TRUE
Number of locks: 2
Material quality: Polyester
Wall build in: TRUE
Depth: 200
Mounting plate depth-adjustable: TRUE
Impact strength: IK10
With ventilation door: FALSE
EMC-version: FALSE
Degree of protection (NEMA): 4X
With backside door: FALSE
Pole fastening: TRUE
Floor installation possible: FALSE

Datasheet for NSYPLM54PG - wall-mounting encl. polyester monobloc IP66 H530xW430xD200mm+metal mount.plate - Schneider Electric - NSYPLM54PG

Download
