wall-mounting encl. polyester monobloc IP66 H308xW255xD160mm+bakelite mount.pl. - Schneider Electric - NSYPLM3025BG
wall-mounting encl. polyester monobloc IP66 H308xW255xD160mm+bakelite mount.pl. - Schneider Electric - NSYPLM3025BG

NSYPLM3025BG

wall-mounting encl. polyester monobloc IP66 H308xW255xD160mm+bakelite mount.pl. - Schneider Electric - NSYPLM3025BG

Enclosures

List Price £140.36 +VAT

Our Price £105.27 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days

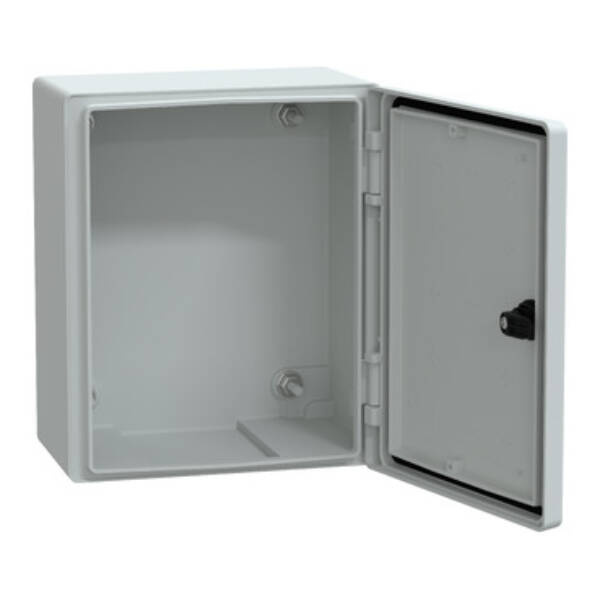

"This PLM is a wall-mounted enclosure that is suitable for multi-purpose applications" "The enclosure has a nominal height, width, and depth of 308 mm, 255 mm, and 160 mm, respectively" "It is made of polyester reinforced with fibreglass, which offers durability and resistance to industrial and outdoor environments" "The enclosure comes in a grey (RAL 7035) color" "The enclosure consists of one body, one door, one mounting plate, and one lock" "The door is plain and can be opened from the front and has a 3 mm double-bar lock" "The mounting plate is a plain bakelite and can be removed by a fixing element" "The enclosure offers high protection against dust and water with an IP66 rating (IEC 60529)" "It is also highly resistant to impacts, with an IK10 rating (IEC 62262), and offers protection against electric shocks with a class II electrical insulation rating" "The enclosure is UL certified and can be stored in ambient air temperatures ranging from -40 to 80°C without affecting its performance"
Brand
Schneider Electric
Range
PanelSeT PLM GRP Enclosures
Part No
NSYPLM3025BG
Weight (kg)
3.46 kg
Type
Thalassa PLM GRP Enclosures

Datasheet for NSYPLM3025BG - wall-mounting encl. polyester monobloc IP66 H308xW255xD160mm+bakelite mount.pl. - Schneider Electric - NSYPLM3025BG
