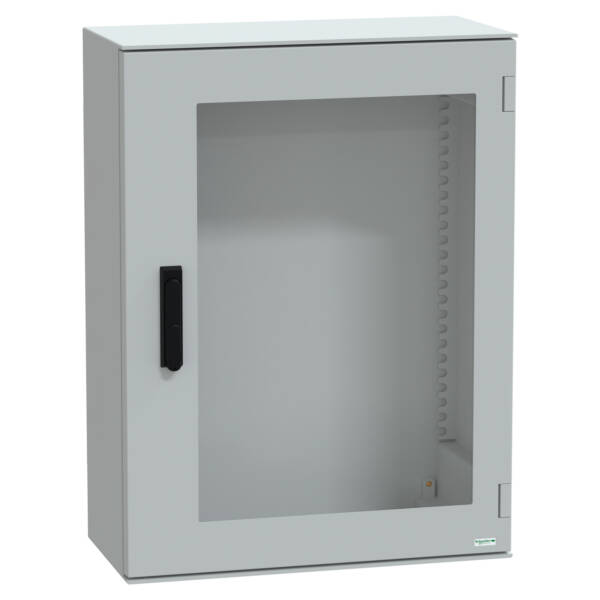

This PanelSeT PLM (formerly PanelSeT PLM) is a wall-mounted enclosure that is suitable for multi-purpose applications. The enclosure has a nominal height, width, and depth of 847 mm, 636 mm, and 300 mm, respectively. It is made of polyester reinforced with fiberglass, which offers durability and resistance to industrial, harsh and outdoor environments. The polyester material is made with 37% of recycled material content. Its packaging is made of 75% recycled carboard and without single-use plastic. The enclosure comes in a grey (RAL 7035) color. The enclosure consists of one body, one door, and one handle lock. The door is transparent and can be opened from the front with a 3 points handle. The enclosure offers high protection against dust and water with an IP66 rating (IEC 60529). It is also highly resistant to impacts, with an IK08 rating (IEC 62262), and offers protection against electric shocks with a class II electrical insulation rating. The enclosure can be used in ambient air temperatures ranging from -40 to 80°C without affecting its performance. The enclosure is also fire resistant up to 960 °C.

Brand

Schneider Electric

Range

PanelSeT PLM GRP Enclosures

Part No

NSYPLM86TVG

Weight (kg)

19.85 kg

Type

Thalassa PLM GRP Enclosures

Couplable

FALSE

With mounting plate

FALSE

Freestanding

FALSE

With glazed door

TRUE

With cover

FALSE

RAL-number

7035

Transparent cover

FALSE

Height

847

Degree of protection (IP)

IP66

Pitched roof

FALSE

Colour

Grey

Width

636

Intermediate mounting

FALSE

Surface finishing

Untreated

Material

Plastic

Number of doors

1

Corner model

FALSE

Number of locks

2

Suitable for outdoor set-up

TRUE

Material quality

Polyester (PET)

Suitable for wall mounting

TRUE

Suitable for wall built-in

TRUE

Depth

300

Pre-stamping

FALSE

With door

TRUE

Max. permissible load of the mounting plate according to IEC 62208

552

Mounting plate depth-adjustable

TRUE

Impact strength

IK08

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

4X

Pole fastening

TRUE

With rear door

FALSE

Max. permissible load of the enclosure according to IEC 62208

699
