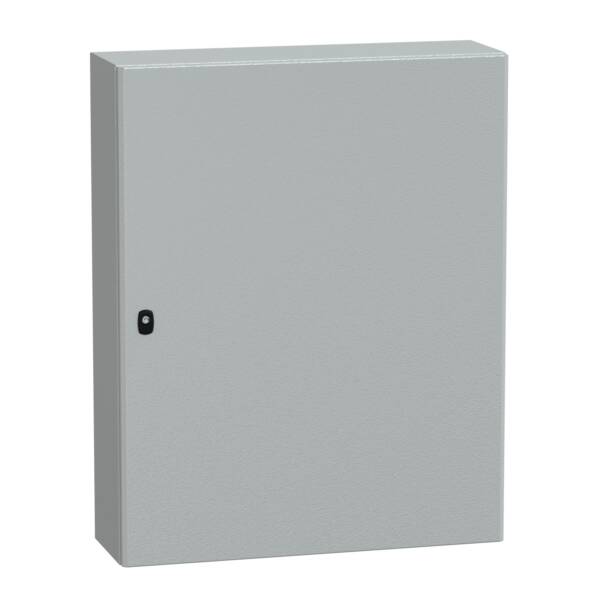

"PanelSeT S3D is a multi-purpose steel wall-mounting enclosure designed for use in harsh environments" "It is certified by LR, UL, GL, cUL, DNV and BV" "It has a nominal height, width and depth of 1000mm, 800mm and 250mm, respectively" "The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish" "The enclosure consists of a body, two cable gland plates, a mounting plate, one plain door and a lock" "The door can be opened up to 120°, allowing easy access to the equipment inside" "Furthermore, it is possible to change the opening side of the door (reversible)" "The door has a three-point lock with a 3mm double-bar insert" "The door and the cable gland plates can be removed for maintenance purposes" "The mounting plate is plain and can be fixed with a fixing element" "The net weight of the enclosure is 49kg" "It has NEMA 4X/13 rating and IK10 (IEC62262) and IP66 (IEC60529) protection ratings" "The enclosure features a single piece body and a gutter-shaped front rail double sheet thickness" "Accessibility for operation is from the front"

Brand

Schneider Electric

Range

PanelSeT S3D

Part No

NSYS3D10825P

Weight (kg)

49.42 kg

Type

Spacial S3D

With mounting plate

TRUE

With glazed door

FALSE

Wall fastening possible

TRUE

Suitable for metrical mounting

TRUE

craft\elements\db\ElementQuery

7035

Tackable

FALSE

Height

1000

Degree of protection (IP)

IP66

Pitched roof

FALSE

Colour

Grey

Width

800

craft\elements\db\ElementQuery

Powder coating

Material

Steel

Number of doors

1

Suitable for outdoor set-up

FALSE

Number of locks

1

craft\elements\db\ElementQuery

Other

Depth

250

Wall build in

FALSE

Mounting plate depth-adjustable

FALSE

Impact strength

IK10

With ventilation door

FALSE

EMC-version

FALSE

craft\elements\db\ElementQuery

4X

Pole fastening

TRUE

With backside door

FALSE

Floor installation possible

FALSE
