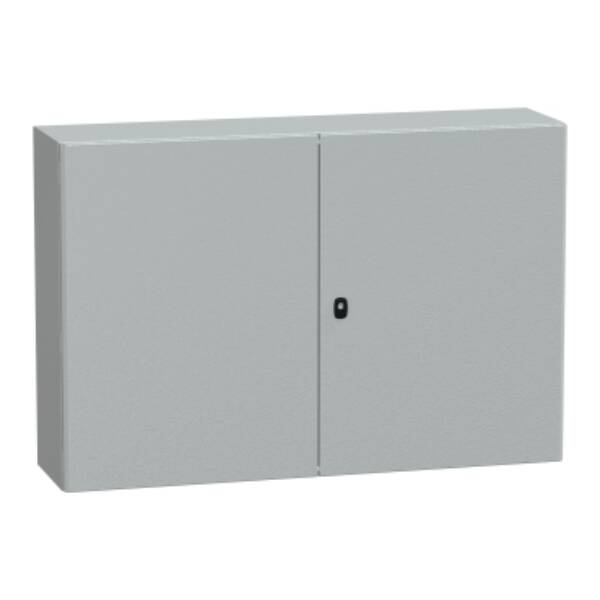

"PanelSeT S3D steel wall-mounting enclosure for multi-purpose applications is designed for use in harsh environments" "It has a nominal height, width and depth of 800mm, 1200mm and 300mm, respectively" "The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish" "It consists of a body, two cable gland plates, two plain doors with a three-point lock and a 3mm double-bar insert, and a galvanised steel mounting plate" "The doors can be opened up to 120°, allowing easy access to the equipment inside" "Furthermore, it is possible to change the opening side of the doors (reversible)" "The doors and the cable gland plates can be removed for maintenance purposes, as well as the mounting plate by fixing elements" "This enclosure has a net weight of 61kg and is certified by cUL, LR, DNV, UL, GL and BV" "It has an IK10 rating (IEC62262) and an IP55 rating (IEC60529)" "The variant particularities include a single-piece body and a gutter-shaped front rail double sheet thickness" "The accessibility for operation is only from the front"

Brand

Schneider Electric

Range

PanelSeT S3D

Part No

NSYS3D81230DP

Weight (kg)

65.00 kg

Type

Spacial S3D

Couplable

FALSE

With mounting plate

TRUE

Freestanding

FALSE

With glazed door

FALSE

Suitable for metrical mounting

TRUE

With cover

FALSE

RAL-number

7035

Transparent cover

FALSE

Height

800

Degree of protection (IP)

IP55

Pitched roof

FALSE

Floor standing wall model

TRUE

Colour

Grey

Width

1200

Intermediate mounting

FALSE

Surface finishing

Powder coating

Number of doors

2

Material

Steel

Number of locks

1

Corner model

FALSE

Suitable for outdoor set-up

FALSE

Suitable for wall mounting

TRUE

Material quality

Other

Suitable for wall built-in

FALSE

Depth

300

Pre-stamping

FALSE

Max. permissible load of the mounting plate according to IEC 62208

250

With door

TRUE

Mounting plate depth-adjustable

FALSE

Impact strength

IK10

With ventilation door

FALSE

EMC-version

FALSE

Degree of protection (NEMA)

12

Pole fastening

TRUE

With rear door

FALSE

Max. permissible load of the enclosure according to IEC 62208

250

Max. permissible load of the door(s) according to IEC 62208

50
