Brand
-
Schneider Electric
-
Range
-

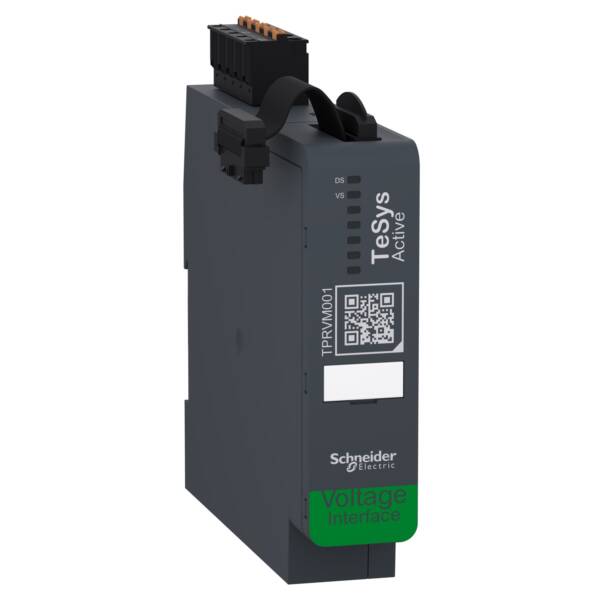

TeSys island
-
Part No
-
TPRVM001
-
Weight (kg)
-
0.24 kg
-
Type
-
TeSys island
-
Supporting protocol for SERCOS
-
FALSE
-
Analogue inputs configurable
-
FALSE
-
Number of HW-interfaces other
-
2
-
SIL according to IEC 61508
-
None
-
System accessory
-
TRUE
-
Performance level according to EN ISO 13849-1
-
None
-
Certified for UL hazardous location division 2
-
FALSE
-
Radio standard GPRS
-
FALSE
-
Height
-
118
-
Fieldbus connection over separate bus coupler possible
-
TRUE
-
Supporting protocol for INTERBUS-Safety
-
FALSE
-
Certified for UL hazardous location class I
-
FALSE
-
Certified for UL hazardous location class III
-
FALSE
-
Certified for UL hazardous location division 1
-
FALSE
-
Certified for UL hazardous location class II
-
FALSE
-
Width
-
25
-
Supporting protocol for EtherCAT
-
FALSE
-
Supporting protocol for AS-Interface Safety at Work
-
FALSE
-
Explosion safety category for dust
-
None
-
Radio standard GSM
-
FALSE
-
Radio standard UMTS
-
FALSE
-
Depth
-
114
-
Explosion safety category for gas
-
None
-
Supporting protocol for DeviceNet Safety
-
FALSE
-
Supporting protocol for EtherNet/IP
-
FALSE
-
Supporting protocol for Foundation Fieldbus
-
FALSE
-
Certified for UL hazardous location group C (ethylene)
-
FALSE
-
Certified for UL hazardous location group A (acetylene)
-
FALSE
-
Certified for UL hazardous location group B (hydrogen)
-
FALSE
-
Certified for UL hazardous location group F (carbonaceous dusts)
-
FALSE
-
Certified for UL hazardous location group G (non-conductive dusts)
-
FALSE
-
Certified for UL hazardous location group D (propane)
-
FALSE
-
Certified for UL hazardous location group E (metal dusts)
-
FALSE
-
Input, thermocouple
-
FALSE
-
Input signal, configurable
-
FALSE
-
Supporting protocol for SafetyBUS p
-
FALSE
-
Type of electric connection
-
Plug-in connection
-
Voltage type (supply voltage)
-
DC
-
Input, resistor
-
FALSE
-
Supporting protocol for PROFINET CBA
-
FALSE
-
Input, resistance thermometer
-
FALSE
-
Input, current
-
FALSE
-
Supporting protocol for PROFINET IO
-
FALSE
-
Supporting protocol for PROFIsafe
-
FALSE
-
Input, voltage
-
TRUE
-
Supporting protocol for ASI
-
FALSE
-
Radio standard Bluetooth
-
FALSE
-
Appendant operation agent (Ex ia)
-
FALSE
-
Radio standard WLAN 802.11
-
FALSE
-
Supporting protocol for PROFIBUS
-
FALSE
-
Supporting protocol for TCP/IP
-
FALSE
-
Front built-in possible
-
FALSE
-
Supporting protocol for KNX
-
FALSE
-
Appendant operation agent (Ex ib)
-
FALSE
-
Supporting protocol for CAN
-
FALSE
-
Degree of protection (IP)
-
IP20
-
IO link master
-
FALSE
-
Supporting protocol for INTERBUS
-
FALSE
-
Rail mounting possible
-
TRUE
-
Output, voltage
-
FALSE
-
Supporting protocol for DeviceNet
-
FALSE
-
Output signal configurable
-
FALSE
-
Supporting protocol for Modbus
-
FALSE
-
Suitable for safety functions
-
FALSE
-
Resolution of the analogue inputs
-
13
-
Supporting protocol for Data-Highway
-
FALSE
-
Output, current
-
FALSE
-
Supply voltage DC
-
20.4…28.8 Volt
-
Rack-assembly possible
-
FALSE
-
Number of analogue inputs
-
3
-
Supporting protocol for LON
-
FALSE
-
Supporting protocol for other bus systems
-
TRUE
-
Supporting protocol for SUCONET
-
FALSE
-
Wall mounting/direct mounting
-
FALSE
