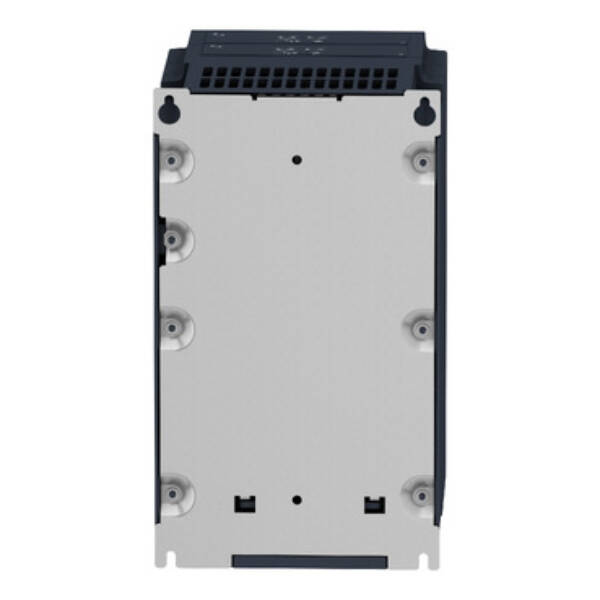

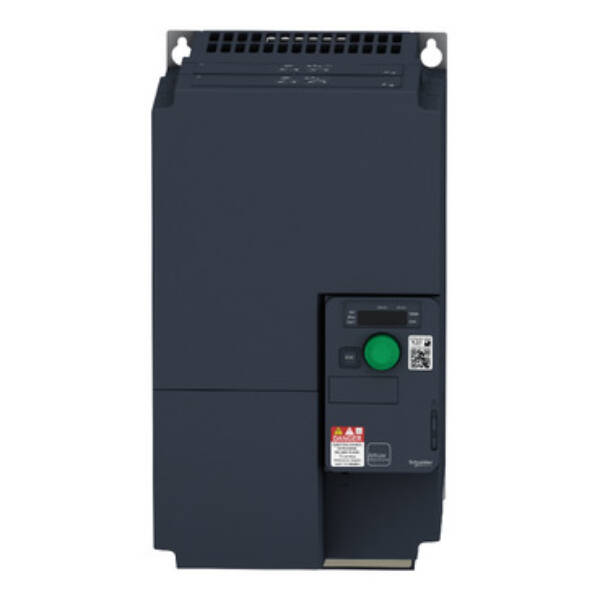

Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). Its compact form factor allows vertical stacking of drives inside machine frames. It works at a rated power up to 15kW / 20hp and a rated voltage from 200V to 240V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. It weighs 6.9kg and its dimensions are 180mm wide, 330mm high, 198mm deep. The drive software includes 5 safety functions that help machines meet safety requirements, whether or not they are used in conjunction with a Preventa safety module. These safety functions are configured using SoMove software. Altivar Machine ATV320 was designed for Original Equipment Manufacturers (OEMs) that meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to IEC, UL, TUV, KC and other international standards. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. The product is delivered in two packages. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM).

Brand

Schneider Electric

Range

Altivar Machine ATV320

Part No

ATV320D15M3C

Weight (kg)

8.15 kg

Type

Altivar Machine ATV320

Supporting protocol for SERCOS

FALSE

Number of HW-interfaces other

1

With optical interface

FALSE

Type of converter

U converter

Mains voltage

200…240 V

Max. output frequency

599

Height

330

Mains frequency

50/60 Hz

Supporting protocol for INTERBUS-Safety

FALSE

Width

180

With control unit

TRUE

With PC connection

TRUE

Supporting protocol for AS-Interface Safety at Work

FALSE

Number of phases input

3

Depth

198

Supporting protocol for DeviceNet Safety

FALSE

Max. output at quadratic load at rated output voltage

15

Supporting protocol for EtherNet/IP

TRUE

Supporting protocol for Foundation Fieldbus

FALSE

Max. output at linear load at rated output voltage

15

Supporting protocol for SafetyBUS p

FALSE

Number of phases output

3

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

TRUE

Supporting protocol for PROFIsafe

FALSE

Supporting protocol for ASI

FALSE

Relative symmetric net voltage tolerance

10

Relative symmetric net frequency tolerance

5

Supporting protocol for PROFIBUS

TRUE

Supporting protocol for TCP/IP

TRUE

Supporting protocol for KNX

FALSE

Application in domestic- and commercial area permitted

FALSE

Supporting protocol for CAN

TRUE

Degree of protection (IP)

IP20

Supporting protocol for INTERBUS

FALSE

Integrated breaking resistance

TRUE

Application in industrial area permitted

TRUE

Supporting protocol for BACnet

FALSE

Supporting protocol for DeviceNet

TRUE

Supporting protocol for MODBUS

TRUE

Number of digital outputs

1

Number of digital inputs

6

Supporting protocol for Data-Highway

FALSE

Number of analogue outputs

1

Number of analogue inputs

3

4-quadrant operation possible

TRUE

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

TRUE

Supporting protocol for SUCONET

FALSE

Number of HW-interfaces RS-485

1

Nominal output current I2N

66

Degree of protection (NEMA)

1

Max. output voltage

240
