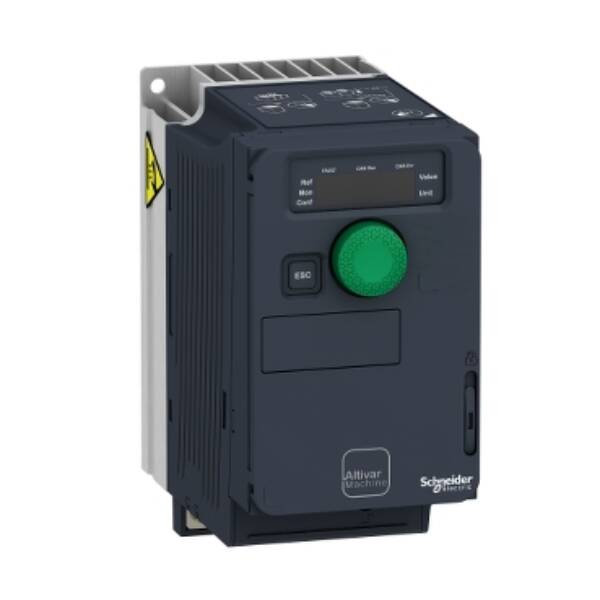

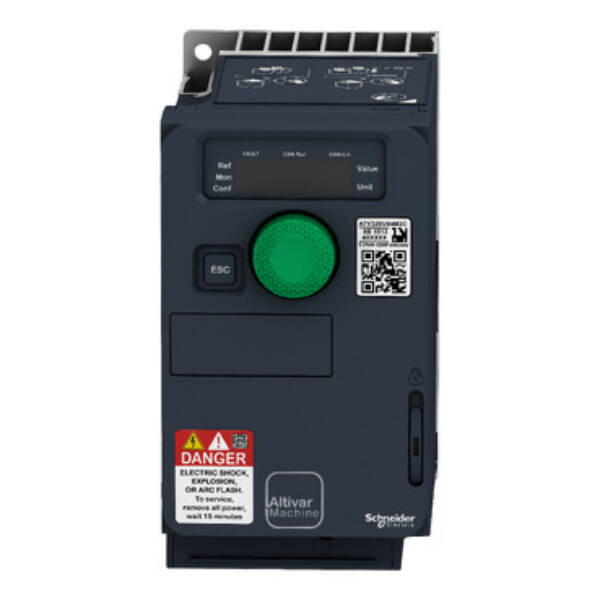

This Altivar 320 variable speed drive can feed single-phase synchronous and asynchronous motors. Its compact form factor allows vertical stacking of drives inside machine frames. It works at a rated power up to 0.37kW / 0.5hp and a rated voltage from 200V to 240V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. The drive software includes 5 safety functions that help machines meet safety requirements, whether or not they are used in conjunction with a Preventa safety module. These safety functions are configured using SoMove software. Altivar Machine ATV320 was designed for Original Equipment Manufacturers (OEMs) that meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, NOM, EAC and RCM certified. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM).

Brand

Schneider Electric

Range

Altivar Machine ATV320

Part No

ATV320U04M2C

Weight (kg)

1.20 kg

Type

Altivar Machine ATV320

Supporting protocol for SERCOS

FALSE

Number of HW-interfaces other

1

Type of converter

U converter

With optical interface

FALSE

Mains voltage

200…240 V

Max. output frequency

599

Height

143

Mains frequency

50/60 Hz

Supporting protocol for INTERBUS-Safety

FALSE

Width

72

With control unit

TRUE

With PC connection

TRUE

Supporting protocol for AS-Interface Safety at Work

FALSE

Number of phases input

1

Depth

138

Max. output at quadratic load at rated output voltage

0.37

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

TRUE

Supporting protocol for Foundation Fieldbus

FALSE

Max. output at linear load at rated output voltage

0.37

Number of phases output

3

Supporting protocol for SafetyBUS p

FALSE

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

TRUE

Supporting protocol for PROFIsafe

FALSE

Relative symmetric net voltage tolerance

10

Supporting protocol for ASI

FALSE

Supporting protocol for PROFIBUS

TRUE

Relative symmetric net frequency tolerance

5

Supporting protocol for TCP/IP

FALSE

Application in domestic- and commercial area permitted

FALSE

Supporting protocol for KNX

FALSE

Supporting protocol for CAN

TRUE

Degree of protection (IP)

IP20

Supporting protocol for INTERBUS

FALSE

Integrated breaking resistance

FALSE

Application in industrial area permitted

TRUE

Supporting protocol for BACnet

FALSE

Supporting protocol for DeviceNet

TRUE

Supporting protocol for MODBUS

TRUE

Number of digital outputs

1

Supporting protocol for Data-Highway

FALSE

Number of digital inputs

6

Number of analogue outputs

1

4-quadrant operation possible

TRUE

Number of analogue inputs

3

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

TRUE

Supporting protocol for SUCONET

FALSE

Nominal output current I2N

3.3

Number of HW-interfaces RS-485

1

Number of HW-interfaces industrial Ethernet

1

Degree of protection (NEMA)

1

Max. output voltage

240
