Brand
-
Schneider Electric
-
Range
-
Altivar 212
-
Part No
-

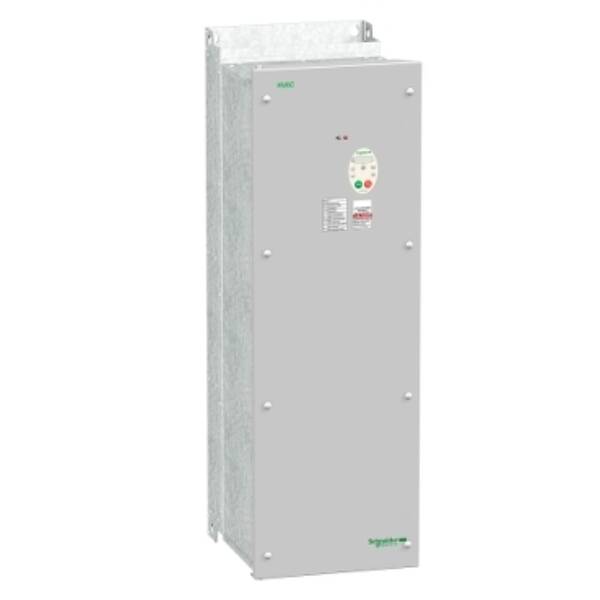

ATV212WD45N4C
-
Weight (kg)
-
77.00 kg
-
Type
-
Altivar 212
-
Supporting protocol for SERCOS
-
FALSE
-
Type of converter
-
U converter
-
With optical interface
-
FALSE
-
Mains voltage
-
380…480 V
-
Max. output frequency
-
200
-
Height
-
880
-
Mains frequency
-
50/60 Hz
-
Supporting protocol for INTERBUS-Safety
-
FALSE
-
Width
-
284
-
With control unit
-
TRUE
-
With PC connection
-
TRUE
-
Supporting protocol for AS-Interface Safety at Work
-
FALSE
-
Number of phases input
-
3
-
Depth
-
343
-
Max. output at quadratic load at rated output voltage
-
45
-
Supporting protocol for DeviceNet Safety
-
FALSE
-
Supporting protocol for EtherNet/IP
-
FALSE
-
Supporting protocol for Foundation Fieldbus
-
FALSE
-
Max. output at linear load at rated output voltage
-
45
-
Number of phases output
-
3
-
Supporting protocol for SafetyBUS p
-
FALSE
-
Supporting protocol for PROFINET CBA
-
FALSE
-
Supporting protocol for PROFINET IO
-
FALSE
-
Supporting protocol for PROFIsafe
-
FALSE
-
Relative symmetric net voltage tolerance
-
10
-
Supporting protocol for ASI
-
FALSE
-
Relative symmetric net frequency tolerance
-
5
-
Supporting protocol for PROFIBUS
-
FALSE
-
Supporting protocol for TCP/IP
-
FALSE
-
Application in domestic- and commercial area permitted
-
TRUE
-
Supporting protocol for KNX
-
FALSE
-
Supporting protocol for CAN
-
FALSE
-
Degree of protection (IP)
-
IP55
-
Supporting protocol for INTERBUS
-
FALSE
-
Integrated breaking resistance
-
FALSE
-
Application in industrial area permitted
-
TRUE
-
Supporting protocol for BACnet
-
FALSE
-
Supporting protocol for DeviceNet
-
FALSE
-
Supporting protocol for MODBUS
-
TRUE
-
Number of digital inputs
-
3
-
Supporting protocol for Data-Highway
-
FALSE
-
Number of analogue outputs
-
1
-
4-quadrant operation possible
-
FALSE
-
Number of analogue inputs
-
2
-
Supporting protocol for LON
-
TRUE
-
Supporting protocol for other bus systems
-
TRUE
-
Supporting protocol for SUCONET
-
FALSE
-
Nominal output current I2N
-
94
-
Number of HW-interfaces RS-485
-
1
-
Max. output voltage
-
480
