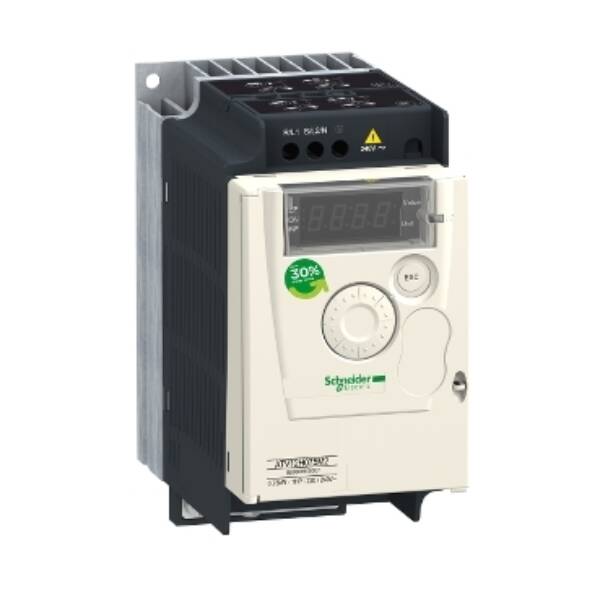

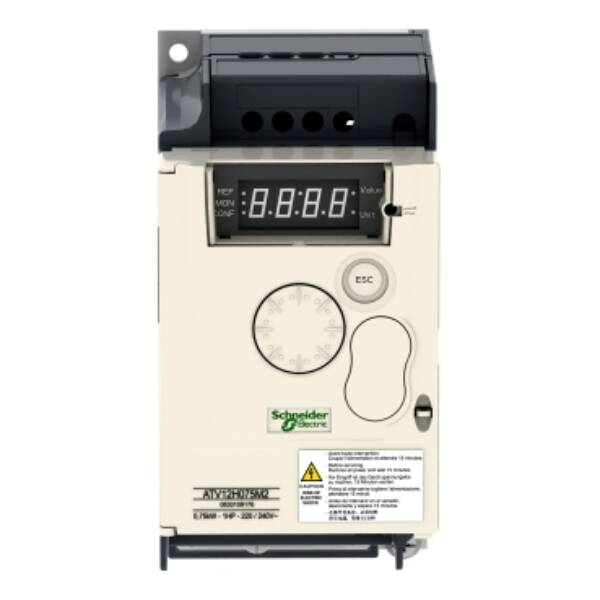

Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 0.75kW / 1hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and fan-cooled enclosure. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills. It conforms to IEC, UL and other international standards. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings.

Brand

Schneider Electric

Range

Altivar 12

Part No

ATV12H075M2

Weight (kg)

1.12 kg

Type

Altivar 12

Supporting protocol for SERCOS

FALSE

Number of HW-interfaces other

8

With optical interface

FALSE

Type of converter

U converter

Mains voltage

200…240 V

Max. output frequency

400

Height

143

Mains frequency

50/60 Hz

Supporting protocol for INTERBUS-Safety

FALSE

Width

72

With control unit

TRUE

With PC connection

TRUE

Supporting protocol for AS-Interface Safety at Work

FALSE

Number of phases input

1

Depth

131.2

Supporting protocol for DeviceNet Safety

FALSE

Max. output at quadratic load at rated output voltage

0.75

Supporting protocol for EtherNet/IP

FALSE

Supporting protocol for Foundation Fieldbus

FALSE

Max. output at linear load at rated output voltage

0.75

Supporting protocol for SafetyBUS p

FALSE

Number of phases output

3

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Supporting protocol for ASI

FALSE

Relative symmetric net voltage tolerance

10

Supporting protocol for PROFIBUS

FALSE

Relative symmetric net frequency tolerance

5

Supporting protocol for TCP/IP

FALSE

Supporting protocol for KNX

FALSE

Application in domestic- and commercial area permitted

TRUE

Supporting protocol for CAN

FALSE

Degree of protection (IP)

IP20

Supporting protocol for INTERBUS

FALSE

Integrated breaking resistance

FALSE

Application in industrial area permitted

TRUE

Supporting protocol for BACnet

FALSE

Supporting protocol for DeviceNet

FALSE

Number of digital outputs

1

Supporting protocol for MODBUS

TRUE

Number of digital inputs

4

Supporting protocol for Data-Highway

FALSE

Number of analogue outputs

1

Number of analogue inputs

1

4-quadrant operation possible

FALSE

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Nominal output current I2N

4.2

Number of HW-interfaces RS-485

1

Max. output voltage

230
