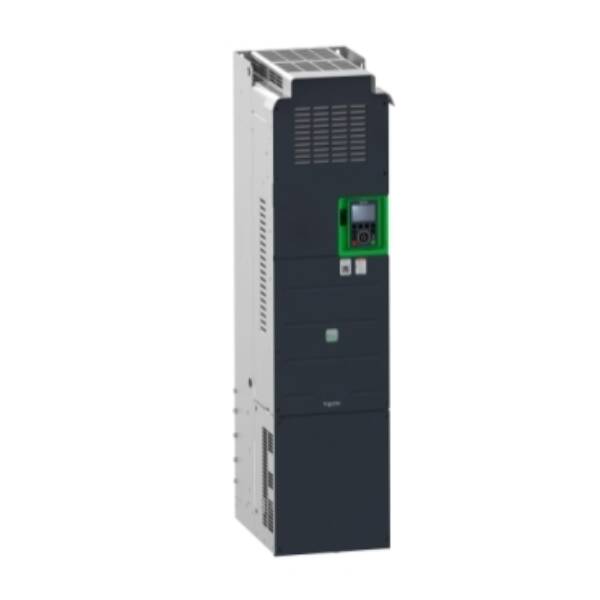

"This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors." "It is suitable for motors with power rating up to 160kW/250HP for applications requiring slight overload (up to 120%)." "It is suitable for motors with power rating up to 132kW/200HP for applications requiring significant overload (up to 150%)." "It works at a rated supply voltage from 380Vac to 480Vac." "This variable speed / frequency drive (VSD / VFD) is specifically designed for industrial processes." "In the following market segments: oil and gas, mining, minerals and metals, food and beverage water and wastewater." "It offers high motor performance on any motor and total control of any kind of coupling in master/slave applications." "Network services help ensure operation continuity even in case of connection breakdown." "Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance." "Its advanced connectivity, including EtherNet/IP and Modbus TCP, allows deep integration into automation architectures."

Brand

Schneider Electric

Range

Altivar Process ATV900

Part No

ATV930C16N4

Weight (kg)

138.00 kg

Type

Altivar Process ATV900

Supporting protocol for SERCOS

FALSE

Type of converter

U converter

With optical interface

TRUE

Mains voltage

380…480 V

Max. output frequency

500

Height

852

Mains frequency

50/60 Hz

Supporting protocol for INTERBUS-Safety

FALSE

Width

320

With control unit

TRUE

With PC connection

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Number of phases input

3

Depth

393

Max. output at quadratic load at rated output voltage

160

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

TRUE

Supporting protocol for Foundation Fieldbus

FALSE

Max. output at linear load at rated output voltage

160

Supporting protocol for SafetyBUS p

FALSE

Number of phases output

3

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

TRUE

Supporting protocol for PROFIsafe

FALSE

Supporting protocol for ASI

FALSE

Relative symmetric net voltage tolerance

10

Supporting protocol for PROFIBUS

TRUE

Relative symmetric net frequency tolerance

5

Supporting protocol for TCP/IP

FALSE

Application in domestic- and commercial area permitted

TRUE

Supporting protocol for KNX

FALSE

Supporting protocol for CAN

TRUE

Degree of protection (IP)

IP00

Supporting protocol for INTERBUS

FALSE

Integrated breaking resistance

FALSE

Application in industrial area permitted

TRUE

Supporting protocol for BACnet

FALSE

Supporting protocol for DeviceNet

TRUE

Number of digital outputs

1

Supporting protocol for MODBUS

FALSE

Number of digital inputs

8

Supporting protocol for Data-Highway

FALSE

Number of analogue outputs

2

Number of analogue inputs

3

4-quadrant operation possible

TRUE

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

TRUE

Supporting protocol for SUCONET

FALSE

Number of HW-interfaces RS-485

3

Nominal output current I2N

302

Max. output voltage

480
