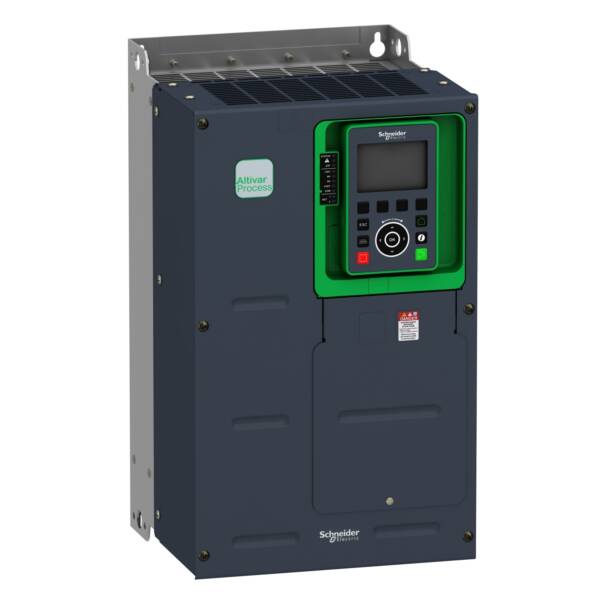

"This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors." "It features three built-in RJ45 communication ports as standard, 1 Ethernet port, and two serial ports." "It works at a rated supply voltage from 500V to 690V AC." "This drive saves up to 30% energy when on standby due to the innovative ‘‘Stop and Go " operation without additional costs." "It is suitable for motors with a power rating of up to 11kW / 15hp for applications requiring slight overload (up to 120%)." "It is suitable for motors with a power rating of up to 7.5kW / 10hp for applications requiring significant overload (up to 150%)." "It weighs 22kg, and its dimensions are 246mm wide, 420mm high, and 242mm deep." "This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications." "Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating." "It is designed to be mounted in vertical position (+/- 10 °) on a wall." "This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process."

Brand

Schneider Electric

Range

Altivar Process ATV600

Part No

ATV630D11Y6

Weight (kg)

21.00 kg

Type

Altivar Process ATV600

Supporting protocol for SERCOS

FALSE

With optical interface

FALSE

Type of converter

U converter

Mains voltage

500…690 V

Max. output frequency

500

Height

420

Mains frequency

50/60 Hz

Supporting protocol for INTERBUS-Safety

FALSE

Width

246

With control unit

FALSE

With PC connection

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Number of phases input

3

Depth

242

Supporting protocol for DeviceNet Safety

FALSE

Max. output at quadratic load at rated output voltage

11

Supporting protocol for EtherNet/IP

TRUE

Supporting protocol for Foundation Fieldbus

FALSE

Max. output at linear load at rated output voltage

11

Number of phases output

2

Supporting protocol for SafetyBUS p

FALSE

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Supporting protocol for ASI

FALSE

Relative symmetric net voltage tolerance

10

Relative symmetric net frequency tolerance

5

Supporting protocol for PROFIBUS

TRUE

Supporting protocol for TCP/IP

TRUE

Supporting protocol for KNX

FALSE

Application in domestic- and commercial area permitted

FALSE

Supporting protocol for CAN

TRUE

Degree of protection (IP)

IP21

Supporting protocol for INTERBUS

FALSE

Integrated breaking resistance

FALSE

Application in industrial area permitted

FALSE

Supporting protocol for BACnet

FALSE

Supporting protocol for DeviceNet

TRUE

Supporting protocol for MODBUS

TRUE

Supporting protocol for Data-Highway

FALSE

Number of digital inputs

6

Number of analogue outputs

2

4-quadrant operation possible

FALSE

Number of analogue inputs

3

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Number of HW-interfaces RS-485

2

Nominal output current I2N

13.5

Max. output voltage

690
