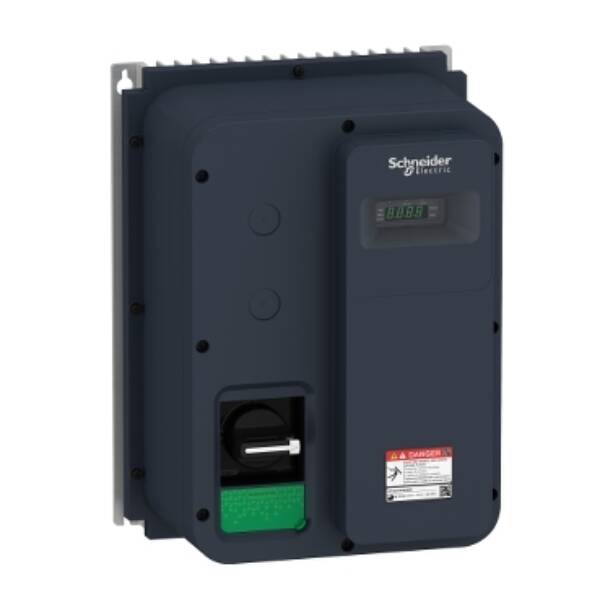

Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). This ATV320 drive can feed 3-phase synchronous and asynchronous motors. It works at a rated power up to 0.55kW, and a rated voltage from 380V to 500V. Altivar high IP offers washable drives for harsh environments, if users want to clean the dust and chemical pollution outside of drives. It is delivered without fan, with embedded EMC C2 filter and it provides IP65 protection. It integrates as standard Modbus and CANopen communication protocols with access via the RJ45 connector on the front of the drive. It weighs 6.3kg. The drive software includes 5 safety functions that help machines meet safety requirements. These safety functions are configured using SoMove software. This Altivar Machine ATV320 is designed for conveyors, carton packers, gantry cranes, woodworking, metal processing, fans, Food & Beverage industry. It conforms to IEC, UL, TUV, KC and other international standards. EcoStruxure Machine software compatibility enables developping, configuring and commissioning the entire machine in a single software environment, including logic, motion control, HMI and related network automation functions. It is delivered in 2 packages. ATV320 can be installed alone or side by side in a multi-drive configuration. The Altivar Machine ATV320 series focus on easy integration for simple and advanced machine requirements with proven motor control and connectivity. ATV320 drives are specifically designed for material handling, packaging, textiles, hoisting, mechanical actuators, and material working.

Brand

Schneider Electric

Range

Altivar Machine ATV320

Part No

ATV320U06N4WS

Weight (kg)

8.50 kg

Type

Altivar Machine ATV320

Supporting protocol for SERCOS

FALSE

Number of HW-interfaces other

1

Type of converter

U converter

With optical interface

FALSE

Mains voltage

380…500 V

Max. output frequency

599

Height

340

Supporting protocol for INTERBUS-Safety

FALSE

Mains frequency

50/60 Hz

Width

250

With control unit

TRUE

With PC connection

TRUE

Supporting protocol for AS-Interface Safety at Work

FALSE

Number of phases input

3

Depth

200

Max. output at quadratic load at rated output voltage

0.55

Supporting protocol for DeviceNet Safety

FALSE

Supporting protocol for EtherNet/IP

TRUE

Supporting protocol for Foundation Fieldbus

FALSE

Max. output at linear load at rated output voltage

0.55

Supporting protocol for SafetyBUS p

FALSE

Number of phases output

3

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

TRUE

Supporting protocol for PROFIsafe

FALSE

Supporting protocol for ASI

FALSE

Relative symmetric net voltage tolerance

10

Relative symmetric net frequency tolerance

5

Supporting protocol for PROFIBUS

TRUE

Supporting protocol for TCP/IP

TRUE

Application in domestic- and commercial area permitted

FALSE

Supporting protocol for KNX

FALSE

Degree of protection (IP)

IP65

Supporting protocol for CAN

TRUE

Supporting protocol for INTERBUS

FALSE

Integrated breaking resistance

TRUE

Application in industrial area permitted

TRUE

Supporting protocol for BACnet

FALSE

Supporting protocol for DeviceNet

TRUE

Number of digital outputs

3

Supporting protocol for MODBUS

TRUE

Number of digital inputs

7

Supporting protocol for Data-Highway

FALSE

Number of analogue outputs

1

Number of analogue inputs

3

4-quadrant operation possible

TRUE

Supporting protocol for LON

FALSE

Supporting protocol for other bus systems

TRUE

Supporting protocol for SUCONET

FALSE

Number of HW-interfaces RS-485

1

Nominal output current I2N

1.9

Degree of protection (NEMA)

12

Max. output voltage

500
