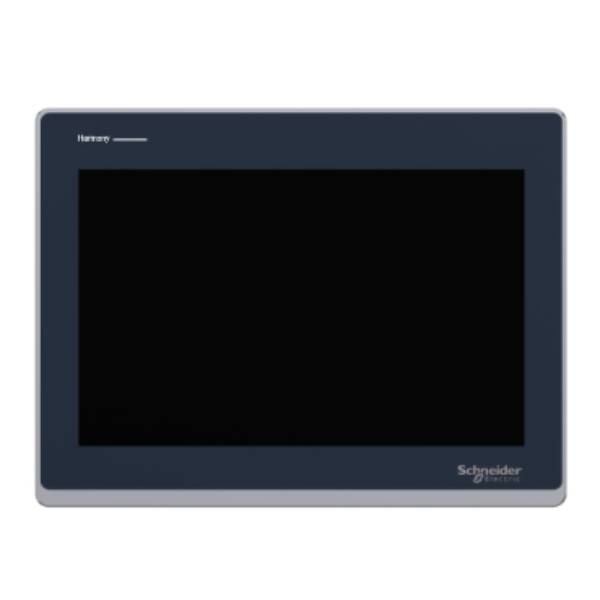

This Basic HMI panel belongs to the Schneider Electric Harmony ST6 range. This single touch resistive HMI is made of alluminium front panel with a multi-color status indicator showing the various operating modes. This HMI interface is 12.1 inch wide with 16 million colors and 1,280 x 800 pixel resolution (WXGA). It is powered by EcoStruxure Operator Terminal Expert software for intuitive user experience. It has a 800 MHz ARM Cortex-A8 CPU, 1 GB device memory, 128 MB user data memory, and 512 KB backup memory. This HMI ST6 supports 2x Ethernet port, COM1 (RS-232C), COM2 (RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 313mm (width) x 235mm (height) x 50mm (depth) and weighs 1.80Kg. This is intended for indsutries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like CSA, CE, China RoHS, KC, REACH. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, cybersecurity with EcoStruxure Secure Connect Advisor, and cost effective equipment. The various degree of protection are IP65F, Type 1, Type 4X (indoor use only), Type 13 (on the front panel when properly installed in an enclosure).

Brand

Schneider Electric

Range

Harmony ST6

Part No

HMIST6600

Weight (kg)

2.32 kg

Type

Harmony ST6

Supporting protocol for SERCOS

FALSE

Number of HW-interfaces USB

2

Useful project memory/user memory

1000

With numeric keyboard

FALSE

With alpha numeric keyboard

FALSE

Certified for UL hazardous location division 2

FALSE

Radio standard GPRS

FALSE

With message system (incl. buffer and confirmation)

FALSE

Supporting protocol for INTERBUS-Safety

FALSE

Type of display

TFT

Certified for UL hazardous location class I

FALSE

Certified for UL hazardous location class III

FALSE

Certified for UL hazardous location division 1

FALSE

Certified for UL hazardous location class II

FALSE

Supporting protocol for EtherCAT

FALSE

Supporting protocol for AS-Interface Safety at Work

FALSE

Degree of protection (IP), front side

IP67

Radio standard GSM

FALSE

Radio standard UMTS

FALSE

Supporting protocol for DeviceNet Safety

FALSE

Touch technology

Resistive touch

Supporting protocol for EtherNet/IP

TRUE

Supporting protocol for Foundation Fieldbus

FALSE

With SW interfaces

TRUE

Operating temperature

0…50 Degrees celsius

Screen diagonal

12

Certified for UL hazardous location group C (ethylene)

FALSE

Certified for UL hazardous location group A (acetylene)

FALSE

Certified for UL hazardous location group B (hydrogen)

FALSE

Certified for UL hazardous location group F (carbonaceous dusts)

FALSE

Certified for UL hazardous location group G (non-conductive dusts)

FALSE

Certified for UL hazardous location group D (propane)

FALSE

Certified for UL hazardous location group E (metal dusts)

FALSE

Built-in depth

50

Supporting protocol for SafetyBUS p

FALSE

Voltage type (supply voltage)

DC

Supporting protocol for PROFINET CBA

FALSE

Supporting protocol for PROFINET IO

FALSE

Supporting protocol for PROFIsafe

FALSE

Radio standard Bluetooth

FALSE

Supporting protocol for ASI

FALSE

Supporting protocol for PROFIBUS

FALSE

Radio standard WLAN 802.11

FALSE

Supporting protocol for TCP/IP

FALSE

Supporting protocol for KNX

FALSE

Number of pixels, horizontal

1280

Supporting protocol for CAN

FALSE

Colour display

TRUE

Supporting protocol for INTERBUS

FALSE

Number of colours of the display

16000000

IO link master

FALSE

Rail mounting possible

FALSE

Supporting protocol for DeviceNet

FALSE

Suitable for safety functions

FALSE

Supporting protocol for Modbus

TRUE

Width of the front

313

Supporting protocol for Data-Highway

FALSE

Height of the front

235

Supply voltage DC

24 Volt

Supporting protocol for LON

FALSE

Power consumption

18.4

Supporting protocol for other bus systems

FALSE

Supporting protocol for SUCONET

FALSE

Wall mounting/direct mounting

FALSE

Number of HW-interfaces RS-485

1

Number of pixels, vertical

800

Number of HW-interfaces RS-232

1
