touch panel screen 5''7 Color - Schneider Electric - HMISTU855

touch panel screen 5''7 Color - Schneider Electric - HMISTU855

HMISTU855

touch panel screen 5''7 Color - Schneider Electric - HMISTU855

Automation

~~List Price £764.32 +VAT~~

Our Price £649.67 +VAT

SAVE 16% OFF List Price

Fast Track Delivery Product

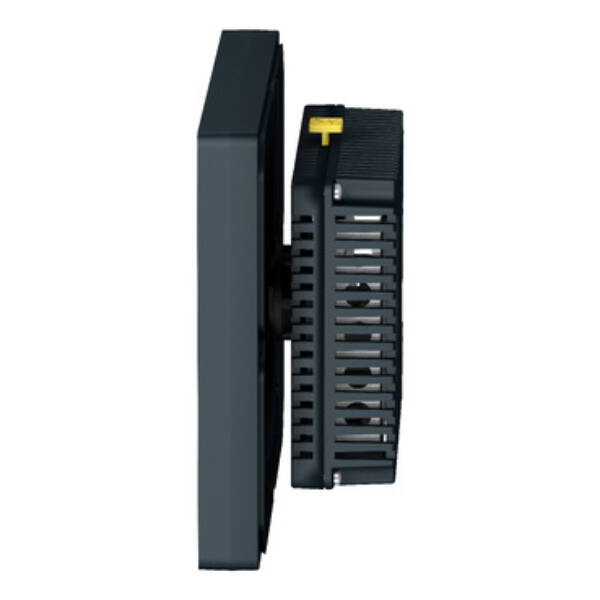

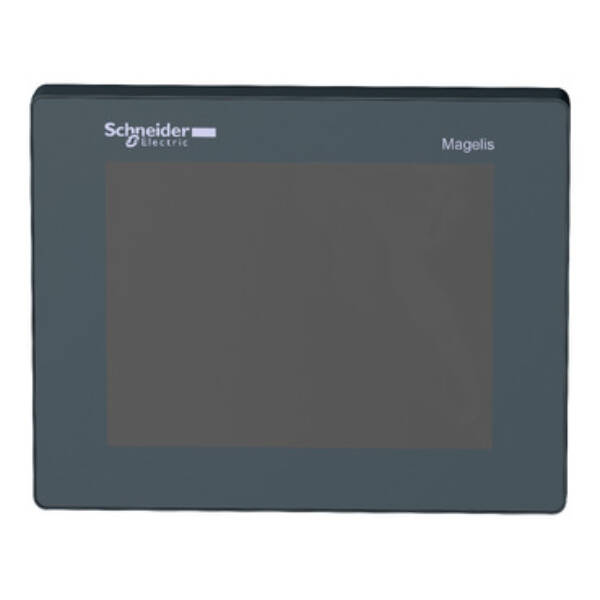

This Magelis STU small touchscreen operator interface (HMI) is supplied with 24V DC, has a 5.7" color TFT LCD display with, 320 x 240 pixels (QVGA) and 32MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays graphic pages with monochrome screen. Thanks to its fixing with a 22mm diameter hole, no panel rectangular cut-out is required. Its RS485 host port makes it ideal to supervise and control simple systems and machines.

Brand: Schneider Electric
Range: Harmony STO & STU
Part No: HMISTU855
Weight (kg): 0.87 kg
Type: Harmony STO & STU
With message indication: FALSE
Supporting protocol for SERCOS: FALSE
Useful project memory/user memory: 128
With numeric keyboard: FALSE
With alpha numeric keyboard: FALSE
Degree of protection (NEMA), front side: 4X
Radio standard GPRS: FALSE
With message system (incl. buffer and confirmation): FALSE
Process value representation (output) possible: FALSE
Supporting protocol for INTERBUS-Safety: FALSE
Type of display: LCD
With printer output: FALSE
Process default value (input) possible: FALSE
With recipes: FALSE
Supporting protocol for AS-Interface Safety at Work: FALSE
Degree of protection (IP), front side: IP65/IP67
Radio standard GSM: FALSE
Radio standard UMTS: FALSE
Additional software components, loadable: FALSE
Touch technology: Other
Supporting protocol for DeviceNet Safety: FALSE
Supporting protocol for EtherNet/IP: FALSE
Supporting protocol for Foundation Fieldbus: FALSE
With SW interfaces: FALSE
Operation temperature: 0…50 °C
Screen diagonal: 3.4
Supporting protocol for SafetyBUS p: FALSE
Voltage type of supply voltage: AC/DC
Supporting protocol for PROFINET CBA: FALSE
Supporting protocol for PROFINET IO: FALSE
Supporting protocol for PROFIsafe: FALSE
Supporting protocol for ASI: FALSE
Radio standard Bluetooth: FALSE
Radio standard WLAN 802.11: FALSE
Supporting protocol for PROFIBUS: FALSE
Supporting protocol for TCP/IP: TRUE
Number of pixels, horizontal: 200
Supporting protocol for KNX: FALSE
With colour display: TRUE
Supporting protocol for CAN: FALSE
IO link master: FALSE
Number of colours of the display: 3
Supporting protocol for INTERBUS: FALSE
Supporting protocol for DeviceNet: FALSE
Rail mounting possible: FALSE
Supporting protocol for MODBUS: TRUE
Suitable for safety functions: FALSE
Supporting protocol for Data-Highway: FALSE
Supply voltage DC: 24 V
Supporting protocol for LON: FALSE
Supporting protocol for other bus systems: FALSE
Supporting protocol for SUCONET: FALSE
Wall mounting/direct mounting: FALSE
Number of pixels, vertical: 80
