time delay relay 10 functions - 1 s..100 h - 24..240 VAC - solid state output - Schneider Electric - RE17LMBM
time delay relay 10 functions - 1 s..100 h - 24..240 VAC - solid state output - Schneider Electric - RE17LMBM

RE17LMBM

time delay relay 10 functions - 1 s..100 h - 24..240 VAC - solid state output - Schneider Electric - RE17LMBM

Control

List Price £66.07 +VAT

Our Price £49.55 +VAT

SAVE 26% OFF List Price
Estimated delivery between 7-10 working days
Get in touch

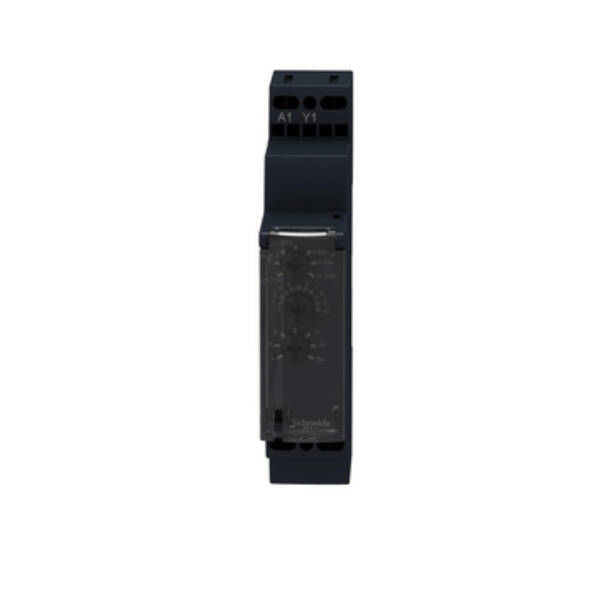

This Harmony RE17L timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 0.7A, is 17.5mm wide and can be supplied with 24V to 240V AC. It also has a solid state output. It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Multi function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Brand
Schneider Electric
Range
Harmony Timer Relays
Part No
RE17LMBM
Weight (kg)
0.07 kg
Type
Harmony Timer Relays
Type of electric connection
Screw connection
Function delay on de-energization
FALSE
Clock function, starting with pause, variable
TRUE
Pluggable on auxiliary contact block
FALSE
Clock function, starting with pulse, variable
TRUE
Function floating contact on de-energization
FALSE
Suitable for front mounting
FALSE
Function pulse shaping
TRUE
Function delay-on energization
TRUE
Height
90
Voltage type for actuating
AC/DC
With semiconductor output
TRUE
Suitable for DIN rail (top hat rail) mounting
TRUE
Width
17.5
Rated control supply voltage Us at AC 50HZ
24…240 V
Rated control supply voltage Us at AC 60HZ
24…240 V
Function floating contact on energization
TRUE
Depth
72
Outputs, reversible delayed/undelayed
FALSE
With plug-in socket
FALSE
Function star-delta
FALSE
Function flashing, starting with pause, fixed time
TRUE
Function flashing, starting with pulse, fixed time
TRUE
Remote operation possible
FALSE
Time range
0.1…360000 s
Suitable for remote control
FALSE

Datasheet for RE17LMBM - time delay relay 10 functions - 1 s..100 h - 24..240 VAC - solid state output - Schneider Electric - RE17LMBM
