NSYPHDT753P
NSYPHDT753P

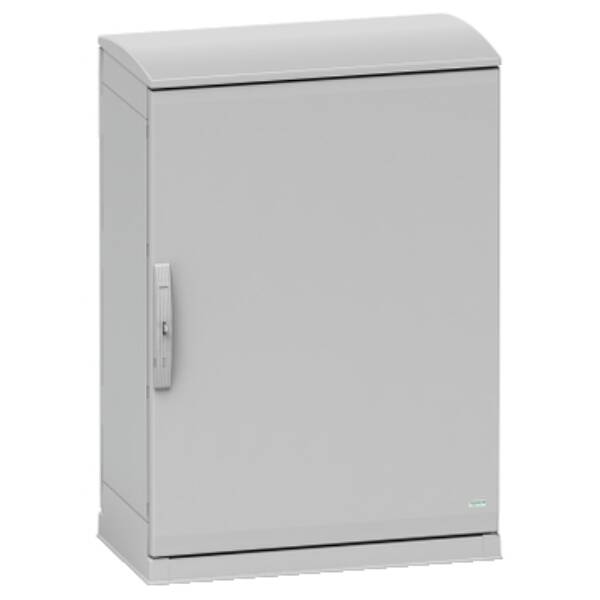

Thalassa PHD outdoor heavy duty - enclosure H788 W500 D320 IP65 plain door - Schneider Electric - NSYPHDT753P
Enclosures
List Price £955.12
+VAT
Our Price £716.34
+VAT
SAVE 25% OFF List Price
Add to basket
Estimated delivery between 7-10 working days
Product description
Specifications
Downloads
"This PHDZT version of the PHD is a robust, wall-mounted enclosure designed for outdoor heavy duty applications" "It measures 788mm in height, 500mm in width, and 320mm in depth, and is made of double-reinforced polyester with fiberglass" "This material provides the enclosure with superior durability and resistance to harsh environments, such as extreme temperatures and solar radiation" "The enclosure is available in grey (RAL 7035) and comprises one body, one door, one canopy, one door retainer, and one document pocket" "The door can be opened up to 120° from either the right or left side, and is secured with a two-point lock and a handle with a 1242E key lock and padlock" "The door and canopy are removable for maintenance purposes" "The enclosure offers excellent protection against fire, impacts, dust, and water" "It can withstand fire up to 960°C in accordance with the IEC 62208 standard, and has an IK10 rating (IEC 62262), indicating high resistance to impacts" "It is rated IP65 (IEC 60529), providing high protection against dust and water" "Additionally, the enclosure has Class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions" "It is UL certified and can be stored in ambient air temperatures ranging from -25°C to 40°C and operated in temperatures ranging from -45°C to 80°C without affecting its performance" "It is also highly resistant to solar radiation, surrounding air, ultraviolet degradation, formation of ice and frost, fauna and flora, and relative humidity" "Finally, the enclosure is vandal-proof, making it suitable for public areas"
Brand
Schneider Electric
Range
PanelSeT for outdoors operation
Part No
NSYPHDT753P
Weight (kg)
19.50 kg
Type
Spacial SFHD / S3HD, Thalassa PHD
Datasheet for NSYPHDT753P - Thalassa PHD outdoor heavy duty - enclosure H788 W500 D320 IP65 plain door - Schneider Electric - NSYPHDT753P
Download
