LUFV2

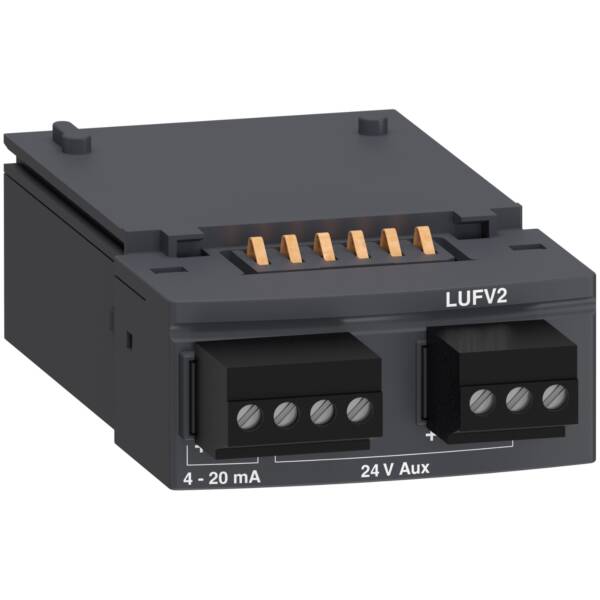

TeSys U - LUF function block indication of motor load 4...20 mA - Schneider Electric - LUFV2
Automation
TeSys U additional function module to be inserted in advanced power bases LUB120, LUB320, LUB380 for motor load monitoring. It provides a 4-20mA output signal, image of the load ratio, to be connected to a load impedance 100 Ohm typical (500 Ohm max). It measures the phase currents and computes the ratio I average/Ir ratio within the range of 0 to 2 for LUCB and LUCD, and of 0 to 3 for LUCC control units. It requires an external power supply 24V DC. To be inserted in the cavity of a power base provided for the auxiliary modules. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Our Price £78.09 +VAT
SAVE 25% OFF List Price
Specifications
- Brand
- Schneider Electric
- Type
- TeSys U
- Range
- TeSys Ultra
- Part No
- LUFV2
- Weight (kg)
- 0.05 kg
Datasheet for LUFV2 - TeSys U - LUF function block indication of motor load 4...20 mA - Schneider Electric - LUFV2
