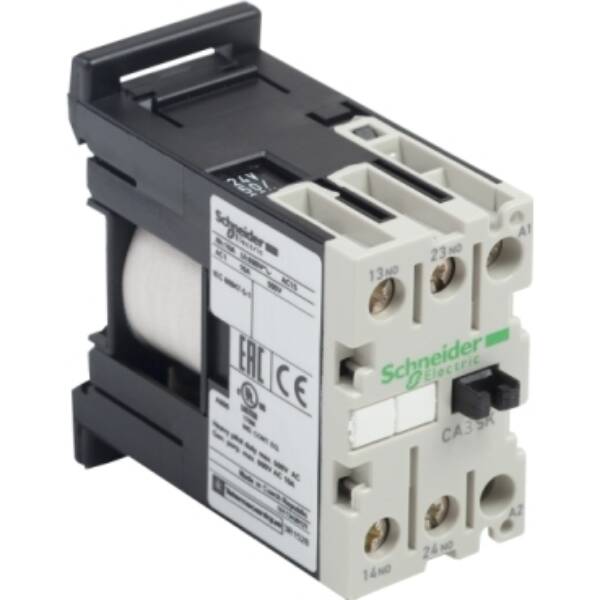

TeSys SK control relay - 2 NO - <= 690 V - 24 V DC standard coil - Schneider Electric - CA3SK20BD

TeSys SK control relay - 2 NO - <= 690 V - 24 V DC standard coil - Schneider Electric - CA3SK20BD

CA3SK20BD

TeSys SK control relay - 2 NO - <= 690 V - 24 V DC standard coil - Schneider Electric - CA3SK20BD

Control

~~List Price £58.21 +VAT~~

Our Price £43.66 +VAT

SAVE 25% OFF List Price

Estimated delivery between 7-10 working days

TeSys SK mini-control relay, 2 contacts (2NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 24V DC control circuit with no inrush consumption, connection by screw terminals. For operating rates until 20 cycles/min and ambient temperature -20/+50°C, it procures high reliability and durability. Compact (27mm width), for clipping on a 35mm DIN rail. Multi standards certified (IEC, UL, CSA, CCC, EAC), (RoHS/REACh).

Brand: Schneider Electric
Range: TeSys K, D, SK Control Relays
Part No: CA3SK20BD
Weight (kg): 0.13 kg
Type: TeSys K, D, SK Control Relays
Interface: FALSE
Connection type auxiliary circuit: Screw connection
Number of auxiliary contacts as normally open contact: 2
With LED indication: FALSE
Mounting method: DIN-rail/screw
Rated operation current Ie, 400 V: 10
Rated control supply voltage Us at DC: 24 V
Voltage type for actuating: DC
Manual operation possible: FALSE

Datasheet for CA3SK20BD - TeSys SK control relay - 2 NO - <= 690 V - 24 V DC standard coil - Schneider Electric - CA3SK20BD

Download
