LT4760M7S
LT4760M7S

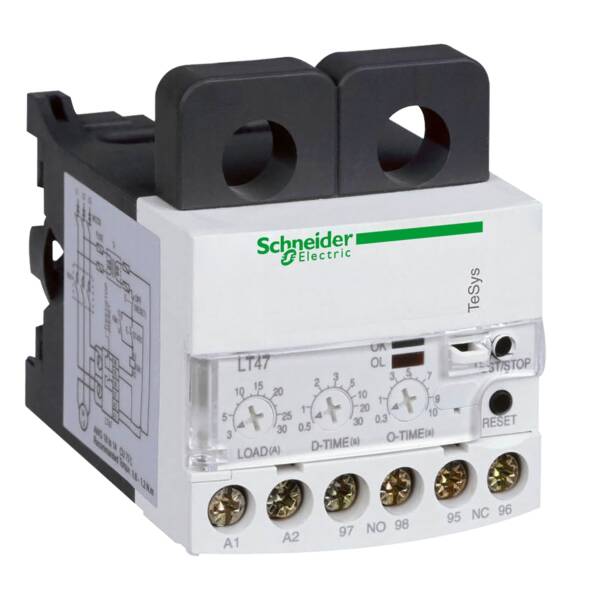

TeSys LT47 electronic over current relays - manual - 5...60 A - 200...240 V AC - Schneider Electric - LT4760M7S
Control
List Price £102.94
+VAT
Our Price £77.21
+VAT
SAVE 25% OFF List Price
Add to basket
Estimated delivery between 7-10 working days
Get in touch
Product description
Specifications
Downloads
TeSys LR47 electronic overcurrent relay, 60A/690V, with manual reset, to be supplied with 200-240V AC, for protection of motors with a rated current 5-50A. It provides 3 dials to adjust the protection, LOAD (5-60A) for the overcurrent level, O-TIME (0.3-10sec) for the acceptable duration of the overcurrent, D-TIME (0.5-30sec) for the starting duration. In addition, the device trips when there is a missing phase during more than O-TIME. The device has a reset button, a test/stop button, 2 LED indicators (Run/Trip), 2 auxiliary contacts 1NO+1NC for fault signalling. Settings can be locked by sealing the transparent cover. DIN rail mounting, without power terminals (currents monitored by 2 current transformers crossed by the motor cables). Multi standards certified (IEC, UL, CSA, CCC, EAC), it conforms to RoHS/REACh regulation.
Brand
Schneider Electric
Range
TeSys Deca overcurrent relays
Part No
LT4760M7S
Weight (kg)
0.20 kg
Type
TeSys Deca overcurrent relays
Type of electrical connection of main circuit
Screw connection
Rated control supply voltage Us at AC 50HZ
200…240 V
craft\elements\db\ElementQuery
200…240 V
craft\elements\db\ElementQuery
Adjustable
craft\elements\db\ElementQuery
1
craft\elements\db\ElementQuery
1
craft\elements\db\ElementQuery
Separate positioning
craft\elements\db\ElementQuery
FALSE
craft\elements\db\ElementQuery
TRUE
craft\elements\db\ElementQuery
AC
craft\elements\db\ElementQuery
5…60 A
craft\elements\db\ElementQuery
TRUE
Datasheet for LT4760M7S - TeSys LT47 electronic over current relays - manual - 5...60 A - 200...240 V AC - Schneider Electric - LT4760M7S
Download
